X6 Frequency Extender, Product Discontinued

60 to 90 GHz, +3 dBm Output Power, WR-12 Waveguide, E-Band
This product has been improved and is now listed as STE-KF412-S1 and STE-KF612-S1. Read more about Limited Run Products here.

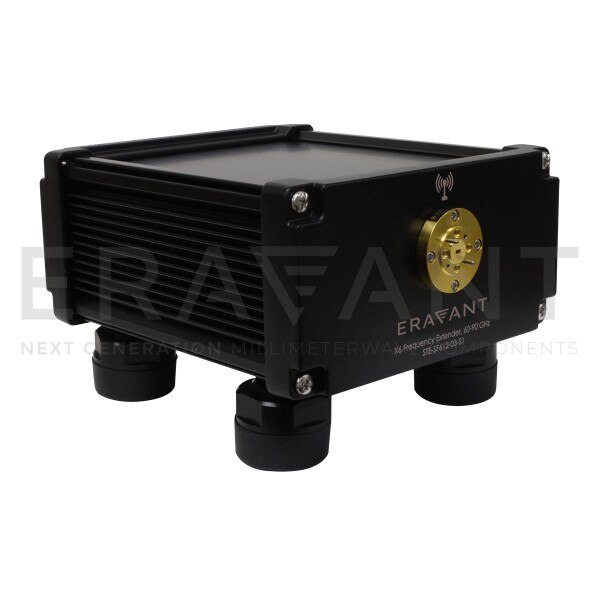

STE-SF612-03-S1 is an E-Band X6 frequency extender that uses an input frequency range of 10 to 15 GHz at +5 dBm along with harmonic generation and filtering to produce a 60 to 90 GHz RF signal at +3 dBm. The extender is designed and manufactured as a bench top unit to extend the low frequency synthesizer or sweeper without losing all of the functionalities and features. The extender also features adjustable legs to allow for an easy test set up.
Login to view pricing

Technical Details

Minimum Output Frequency60 GHz
Maximum Output Frequency90 GHz
Output Power+3 dBm
Minimum Input Frequency10 GHz
Maximum Input Frequency15 GHz
Input Power+5 dBm
DC Bias+12 V/450 mA
Output PortWR-12 Waveguide
Input PortSMA (F)
