X4 Frequency Extender

60 to 90 GHz, +16 dBm Output Power, WR-12 Waveguide, E-Band
SKU:STE-KF412-S1
Availability:4 to 6 Weeks ARO

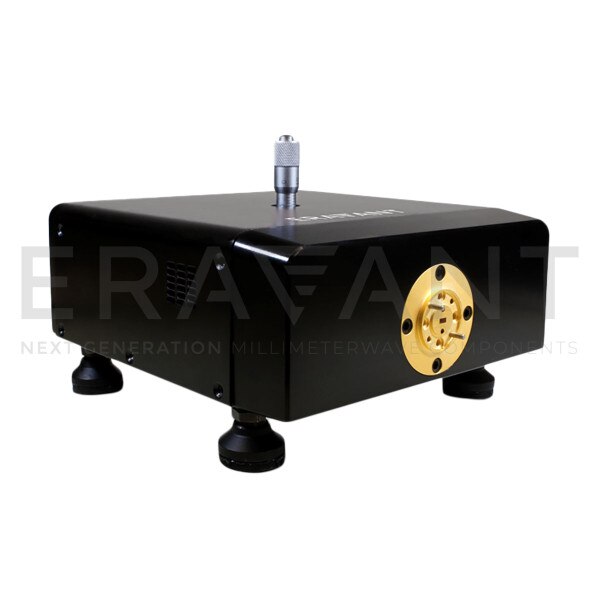

STE-KF412-S1 is a high ouput power E-Band X4 frequency extender that uses an input frequency range of 15 to 22.5 GHz at +5 dBm along with harmonic generation and filtering to produce a 60 to 90 GHz RF signal. The extender features an adjustable attenuator to for output power control. The extender is designed and manufactured as a bench top unit to extend the low frequency synthesizer or sweeper without losing all of the functionalities and features. The extender also features adjustable legs, which can also be removed, to allow for an easy test set up.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 $10,500.00
2 $9,975.00
3 - 4 $9,476.25

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Output Frequency60 GHz
Maximum Output Frequency90 GHz
Output Power+16 dBm
Minimum Input Frequency15 GHz
Maximum Input Frequency22.5 GHz
Input Power+5 dBm
Power Supply100VAC to 240 VAC
Output PortWR-12 Waveguide
Input Port2.92 mm K (F)
