Proxi-Flange and Wave-Glide

GOODBYE ALIGNMENT ISSUES

PROXI-FLANGE™ & WAVE-GLIDE™

The Proxi-Flange™ avoids the problem of poor return loss and high insertion loss caused by imperfect contact when two waveguide flanges are mated. The captive screws normally used in waveguide test sets can cause cocking issues if tightened unevenly, but the Proxi-Flange™ eliminates the need for waveguide screws, resulting in improved measurement consistency and repeatability when paired with the Wave-Glide™ rail system.

UNI-GUIDE™: WAVEGUIDE CONNECTOR

The waveguide, along with the coaxial line, is one of the most important transmission media in any modern RF, microwave and millimeter-wave component, and sub-assembly and ...

Corner Reflectors

The corner reflector is a passive device used to directly reflect radio waves back toward the emission source. Therefore, the corner reflector is a useful device for radar system calibration.

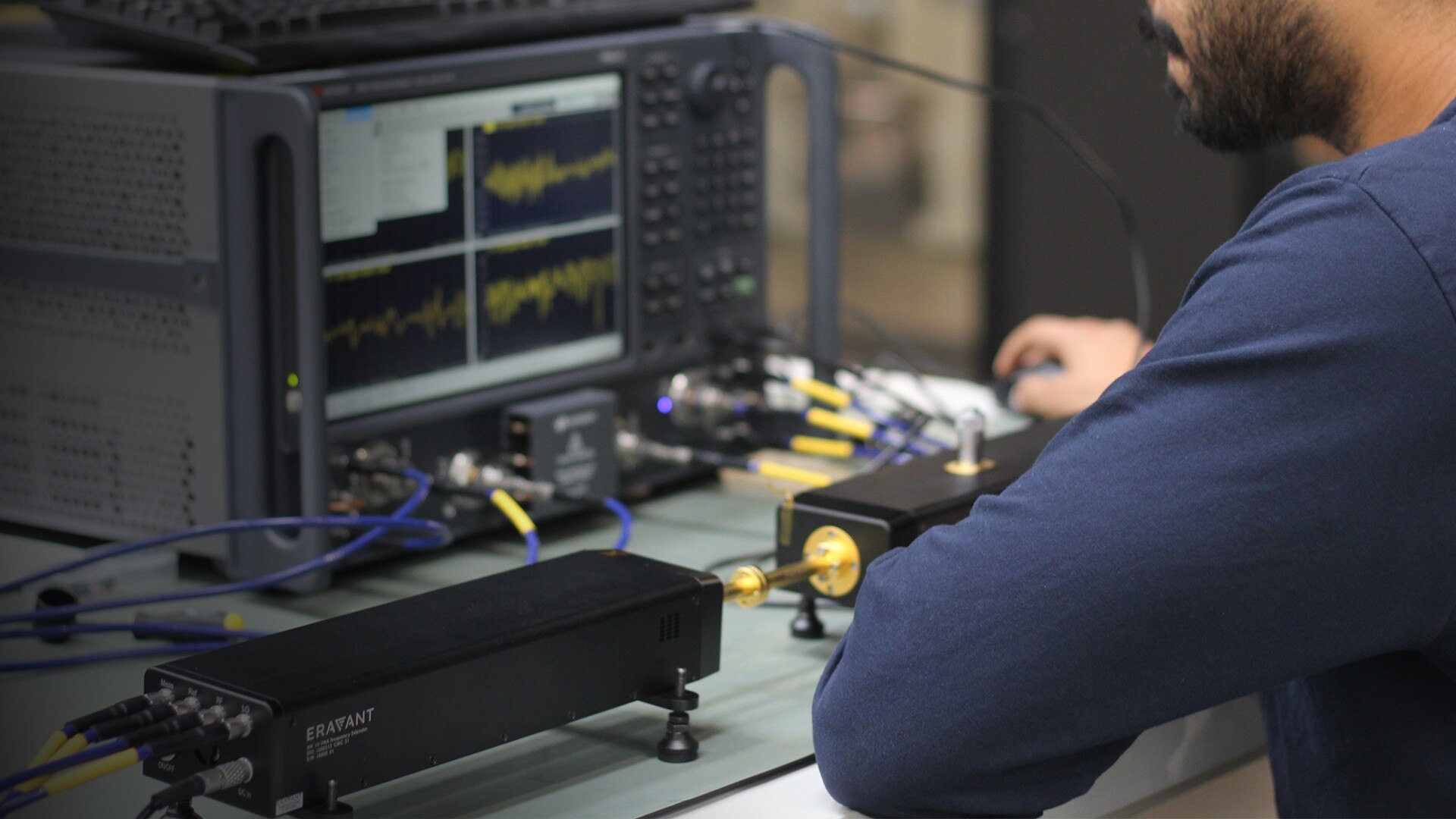

VNA EXTENDERS, CALIBRATION KITS AND CONTACTLESS FLANGE-RAIL

To enhance the millimeterwave VNA test system, Eravant has invented a contactless flange/rail system. Contactless Flange is a waveguide section which forms RF choke when making contact to another waveguide flange to eliminate...

COTS PRODUCT OPERATION TEMPERATURE RANGE AND RELIABILITY

Due to the traditional system application and new 5G and IoT challenges, the industry considers millimeterwave technology as an “old” but “new” frontier. The technology is steadily finding increased applications. Due to technological evolution...
