X6 Frequency Extender

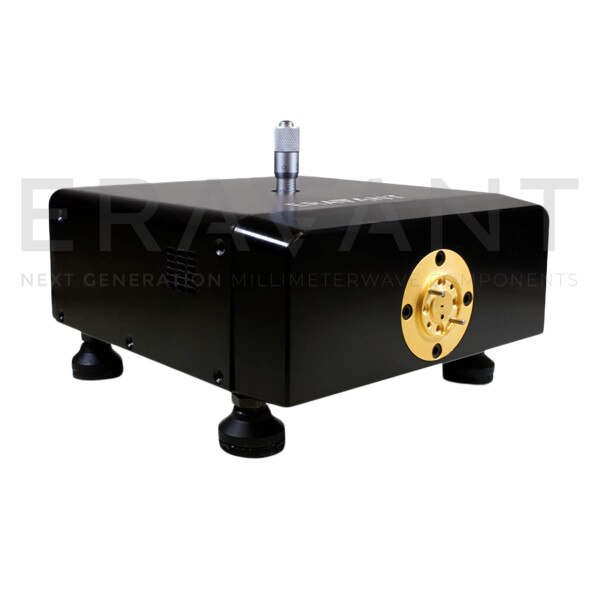

STE-KF612-S1 is a high output power E-Band X6 frequency extender that uses an input frequency range of 10 to 15 GHz at +3 dBm along with harmonic generation and filtering to produce a 60 to 90 GHz RF signal. The extender features an adjustable attenuator to for output power control. The extender is designed and manufactured as a bench top unit to extend the low frequency synthesizer or sweeper without losing all of the functionalities and features. The extender also features adjustable legs, which can also be removed, to allow for an easy test set up.
