Vector Network Analyzer Waveguide Calibration Kit with Proxi-Flange™ Contactless Flange

WR-22, Q-Band, 33 to 50 GHz
SKU:STQ-TO-22-S1-CKIT1-CF
Availability:IN STOCKPlease contact us if you need more units than what is available online.

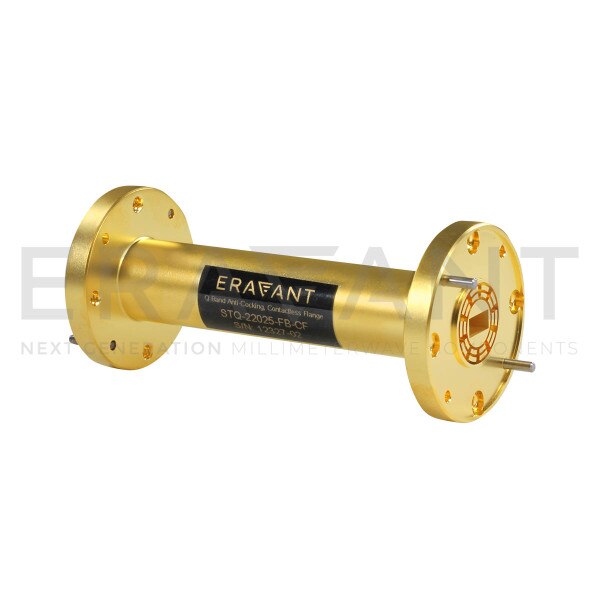

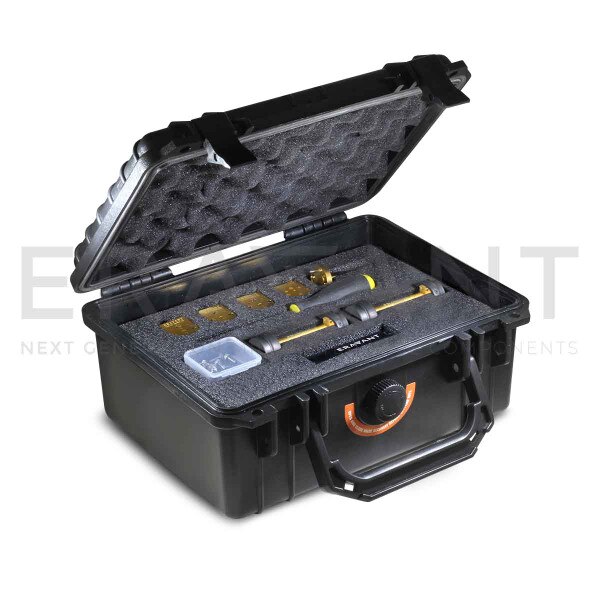

STQ-TO-22-S1-CKIT1-CF is a metrology grade Q-band waveguide vector network analyzer (VNA) calibration kit designed to work with industry standard network analyzers in the frequency range of 33 to 50 GHz. The calibration kit consists of one fixed short, one fixed matching load, waveguide shims (⅛ƛg, ¼ƛg, ⅜ƛg offsets), twenty 3/32 hex head waveguide screws, six 3/32 hex head extended waveguide screws, four alignment dowel pins, a 3/32” hex waveguide screw driver and one calibration data USB drive. The cal-kit also features a pair of 2.5” metrology grade, WR-22 straight sections with Eravant trademarked Proxi-Flange™ contactless flange, models STQ-WG-22025-FB-CF. Proxi-Flange™ contains an array of small pin-like structures acting as RF choke to reduce losses caused by imperfect contact between mating flanges, and allows for screw-less rapid testing. The calibration kit is collected in a ruggedized box and is an ideal higher performance metrology grade calibration set for VNA system calibration. The calibration kit can be offered with NIST traceable calibration data and certification for an added fee.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $4,000.00
3 - 4 $3,800.00
5 - 9 $3,610.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Frequency Range33 to 50 GHz
TypeWR-22
Components IncludedProxi-Flange™ Contactless Flange
Metrology Fixed Short
Metrology Fixed Waveguide Load
Metrology ⅛ Wavelength Offset
Metrology ¼ Wavelength Offset
Metrology ⅜ Wavelength Offset
Waveguide Screws, 3/32 Hex Head
Extended Waveguide Screws, 3/32 Hex Head
Alignment Dowel Pins
Waveguide Screw Driver, 3/32 Hex Head
Calibration Data, USB Drive
Electrical SpecificationsFixed Load VSWR:1.06:1 Max
Fixed Load Power Handling:0.2 Watts Max
