Wave-Glide™ Rail System for Millimeterwave VNA Setup

Manual Linear Rail
SKU:STQ-TL-RW-S10-M1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

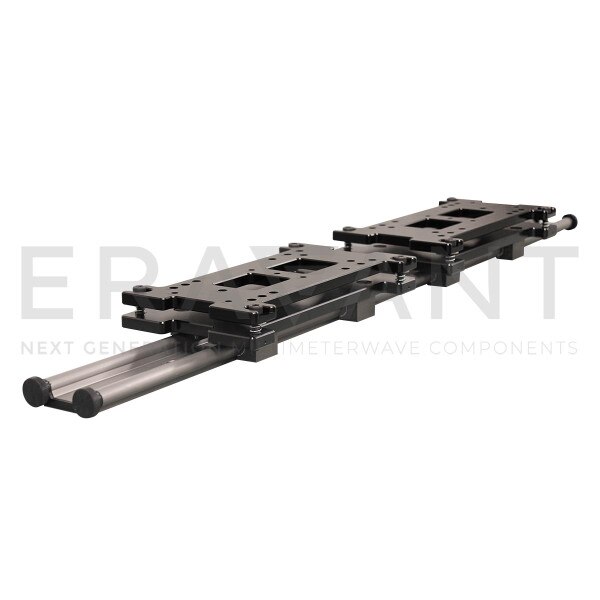

STQ-TL-RW-S10-M1 is a patent pending rail system to enhance the millimeterwave VNA testing experience. Trademarked as Wave-Glide™, it is a Novel Apparatus for Accurate, Reliable and Fast Millimeter-Wave VNA Testing when working with the VNA extenders and Eravant patent pending and trademarked Proxi-Flange™ contactless flange.

Proxi-Flange™ contactless flanges is the key invention enableing  Wave-GlideTM Rail to perform millimeterwave testing using VNA extenders. Proxi-Flange™ contactless flange is offered to cover the frequency range of 18 GHz to 220 GHz in waveguide bands from WR-42 to WR-05.

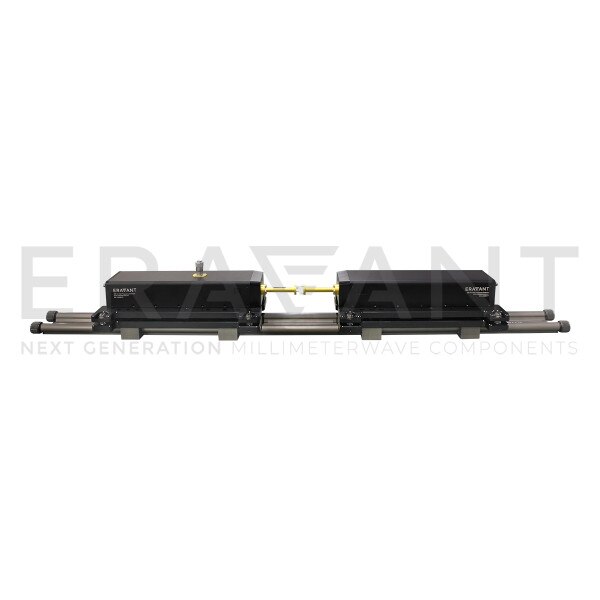

The rail setup eliminates the inter-connecting waveguides, avoids tedious and time-consuming alignment efforts, and increases the productivity. The Wave-Glide™ is constructed by using a set of linear rails together with mounting plates for connecting various VNA manufacturers’ extenders.

The Wave-Glide™ is compatible with the extender modules listed on second page. Compatibility can be extended to other manufacturer’s frequency extender modules by customizing mounting plates.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $2,650.00
3 - 4 $2,517.50
5 - 9 $2,391.63

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Rail Length41"
Rail Setup TypeManual Linear
Compatible Extender ManufacturersEravant
Rohde & Schwarz
Virginia Diodes
Farran
