Vector Network Analyzer Waveguide Calibration Kit, Limited Run

WR-22, Q-Band, 33 to 50 GHz
SKU:STQ-TO-22-U3-CKIT1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider STQ-TO-22-S1-CKIT1 as an alternative solution. Read more about Limited Run Products here.

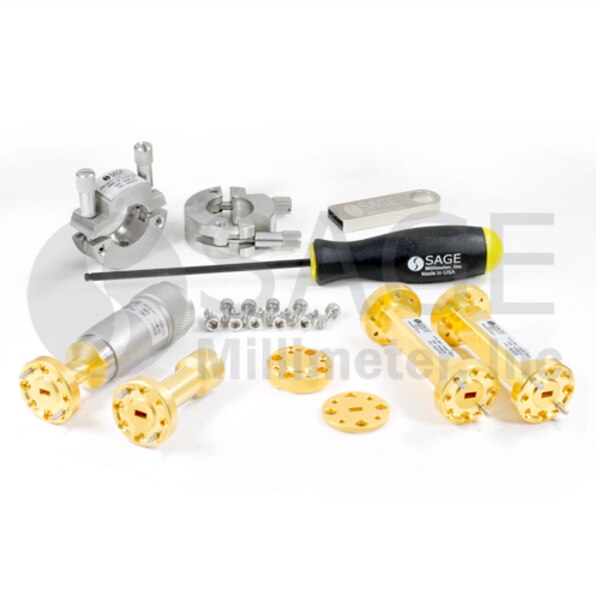

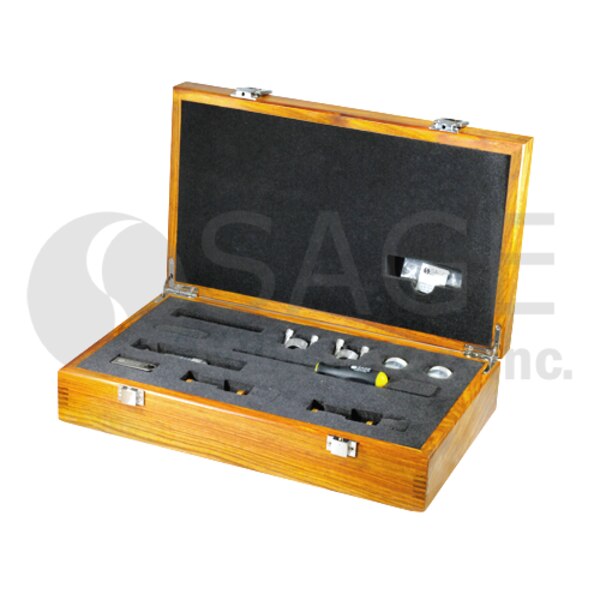

STQ-TO-22-U3-CKIT1 is a Q-band waveguide vector network analyzer (VNA) calibration kit designed to work with industry standard network analyzers in the frequency range of 33 to 50 GHz. The calibration kit consists of two straight waveguide sections, one fixed short, one fixed matching load, one sliding load, one ¼ wavelength offset, two waveguide quick connects, ten 3/32 hex head waveguide screws, a 3/32" hex waveguide screw driver and one calibration data USB drive. The calibration kit is collected in a wooden box and is an ideal higher performance metrology grade calibration set for VNA system calibrations.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 $5,500.00
2 $5,225.00
3 - 4 $4,963.75

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Frequency Range33 to 50 GHz
TypeWR-22
Components IncludedMetrology Straight Waveguide Section, 2" Long
Metrology Fixed Short
Metrology Fixed Waveguide Load
Metrology ¼ Wavelength Offset
Waveguide Quick Connect, 0.75" Diameter Flange
Waveguide Screws, 3/32 Hex Head
Waveguide Screw Driver, 3/32 Hex Head
Calibration Data, USB Drive
Electrical SpecificationsFixed Load VSWR:1.06:1 Max
Fixed Load Power Handling:1 Watts Max
Sliding Load VSWR:1.06:1 Max
Sliding Load Power Handling:0.5 Watts Max
