X8 Frequency Extender

90 to 140 GHz, +0 dBm Output Power, WR-08 Waveguide, F-Band
SKU:STE-KF808-00-S1

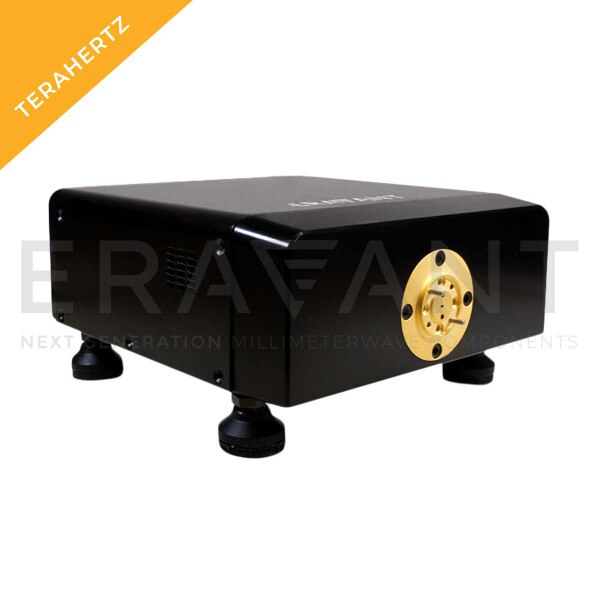

STE-KF808-00-S1 is a F-Band X8 frequency extender that uses an input frequency range of 11.25 to 17.5 GHz at +5 dBm along with harmonic generation and filtering to produce a 90 to 140 GHz RF signal. The typical output power is 0 dBm across the frequency range. The assembly is designed and manufactured as a bench top unit to extend the low frequency synthesizer or sweeper, such as Eravant Access model STL-SG-022203-S1, without losing all of the functionalities and features. The extender also features adjustable legs, which can also be removed, to allow for an easy test set up.
ECCN: 3A001.b.7
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Output Frequency90 GHz
Maximum Output Frequency140 GHz
Output Power+0 dBm
Minimum Input Frequency11.25 GHz
Maximum Input Frequency17.5 GHz
Input Power+5 dBm
Power Supply100 VAC to 240 VAC
Output PortWR-08 Waveguide
Input Port2.92 mm (F)
