ACCESS Low Phase Noise Synthesized Signal Generator

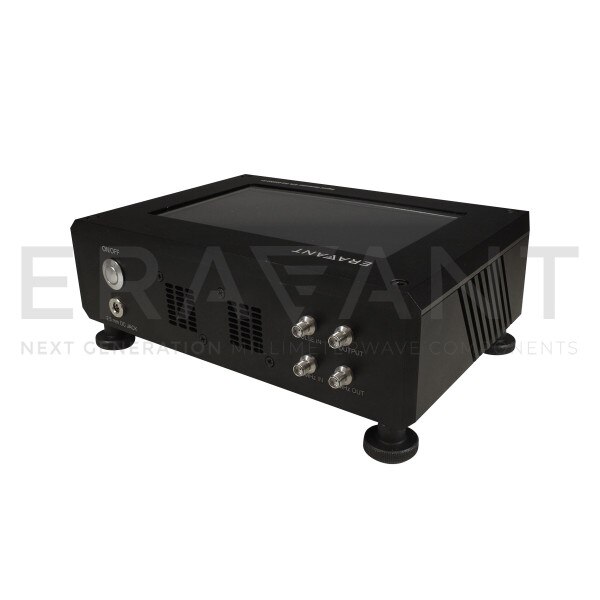

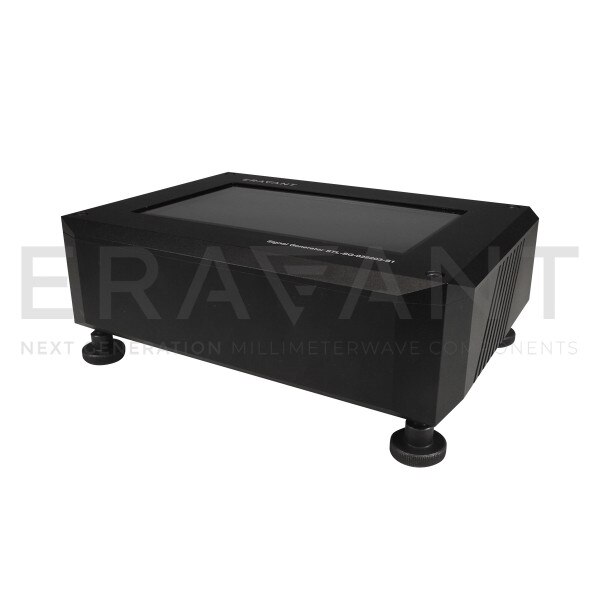

STL-SG-022203-S1 is a portable, touch screen-controlled Synthesized Signal Generator designed and manufactured for standard test instrumentation, communication, and Radar systems as a local signal source. The module covers a frequency range of 0.2 to 20 GHz with exceptional low harmonics and spurious emissions as well as superior low phase noise performance. The model is externally referenced with high performance internal reference backup. The frequency resolution of the module is up to 0.2 Hz. The synthesized signal generator has a maximum spurious of -65 dBc. It has a built-in voltage regulator to further improve the signal quality and provide over voltage protection. This module can be directly controlled with a touch screen via a user-friendly GUI.
