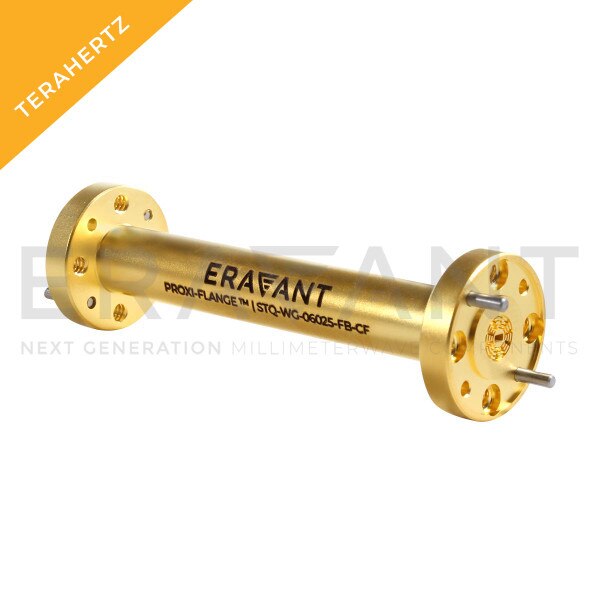

Proxi-Flange™ Contactless Flange Straight Waveguide Section

WR-08 Waveguide Contactless Flange, 90 to 140 GHz, 2.5"
SKU:STQ-WG-08025-FB-CF
Availability:IN STOCKPlease contact us if you need more units than what is available online.
STQ-WG-08025-FB-CF is an Eravant trademarked Proxi-Flange™, patented, with a F-band contactless flange straight waveguide section with WR-08 waveguides and UG-387/U-M Anti-Cocking flanges. The Proxi-Flange™ is constructed with a special waveguide flange populated with an array of small pin-like structures to realize the RF choking actions. The Proxi-Flange™ avoids the problem of poor return loss and high insertion loss caused by imperfect contact when two waveguide flanges are mated. The captive screws normally used in waveguide test sets can cause cocking issues if tightened unevenly, but Proxi-Flange™ eliminates the need for any waveguide screws, resulting in improved device durability, measurement consistency, and test repeatability. Eravant’s Wave-Glide™, patented, fixture - the Novel Apparatus of Millimeter-Wave Frequency for Accurate and Automatic Testing, further enhances the Proxi-Flange™ benefits and makes it the perfect candidate for volume production and automatic test lines where frequent connection and disconnection between DUTs and test equipment occurs. Model STQ-WG-08025-FB-CF is offered to cover the frequency range of 90 to 140 GHz with an insertion length of 2.5”. Other insertion lengths and other frequency bands are offered under various model numbers to cover frequency ranges from 18 to 325 GHz.

Featured Blogs and Videos
VNA Extenders, Calibration Kits and Contactless Flange-Rail
Screwless Calibration With Proxi-Flange™ Video
Choosing Waveguide Sections For Test and Measurement Applications
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency90 GHz
Maximum Frequency140 GHz
Insertion Loss1.0 dB
Return Loss30 dB
Waveguide SizeWR-08 Waveguide
Insertion Length2.5"
