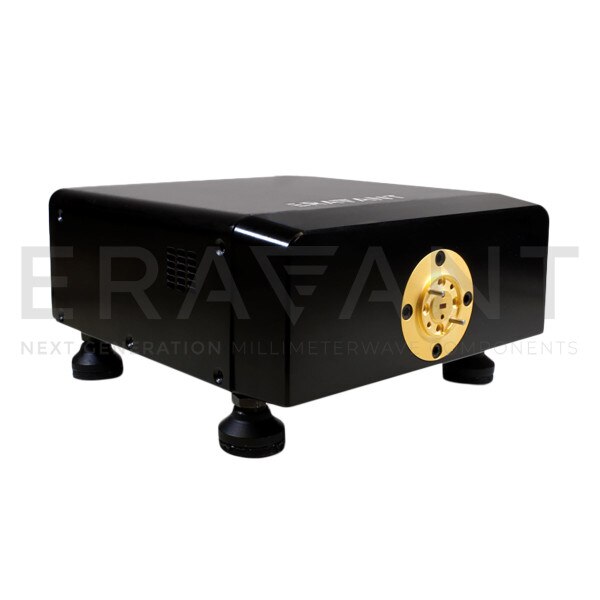

V-Band Down-converter

50 to 75 GHz RF Input, 10 MHz to 18 GHz IF Output, WR-15 Waveguide
SKU:STC-N12-15-S1
STC-N12-15-S1 is a V-Band down-converter that converts millimeter wave signals from a frequency range of 50 to 75 GHz to the baseband at 1.6 GHz. The down-converter requires 12.5 to 18.75 GHz at +3 dBm input power as its LO. The down-converter has low harmonic levels and excellent gain flatness, making it a good candidate to extend low frequency test equipment for millimeter wave testing purposes.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 $8,650.00
2 $8,217.50
3 - 4 $7,806.63

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency50 GHz
Maximum RF Frequency75 GHz
Minimum IF Frequency10 MHz
Maximum IF Frequency18 GHz
Minimum LO Frequency12.5 GHz
Maximum LO Frequency18.75 GHz
Power Supply100 VAC to 240 VAC
RF PortWR-15 WG
