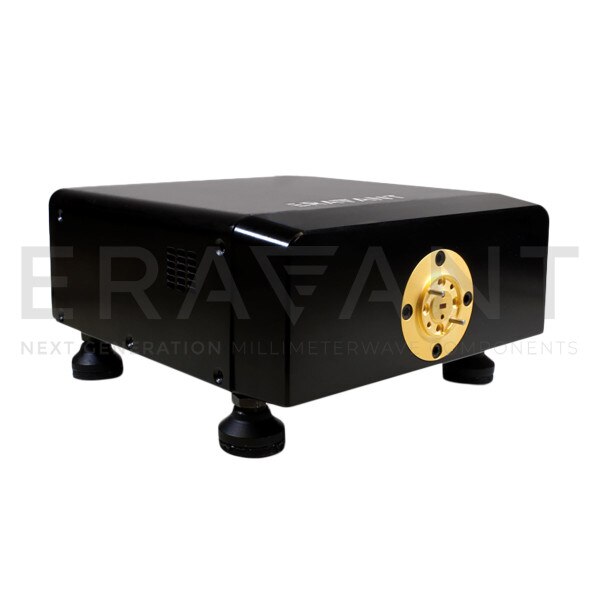

V-Band Up-Converter

50 to 75 GHz RF Output, DC to 25 GHz IF Input, WR-15 Waveguide
SKU:STV-00-15-S1
Availability:4 to 6 Weeks ARO
STV-00-15-S1 is a V-Band up-converter that converts IF signals from a frequency range of DC to 25 GHz with -5 dBm power to the millimeterwave frequency at 50 to 75 GHz. The up-converter requires 12.25 to 18.75 GHz at 0 dBm input power as its LO, which can be obtained from a standard 20 GHz synthesizer, such as Eravant model SOT-02220313200-SF-B6. The up-converter has low harmonic levels and excellent gain flatness, making it a good candidate to extend low frequency test equipment for millimeterwave testing purposes.
ECCN: 3A001.b.4
Login to View Pricing

Bulk Pricing

Quantity Price
1 $13,350.00
2 $12,682.50
3 - 4 $12,048.38

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum RF Frequency50 GHz
Maximum RF Frequency75 GHz
Minimum IF FrequencyDC
Maximum IF Frequency25 GHz
Minimum LO Frequency12.25 GHz
Maximum LO Frequency18.75 GHz
RF PortWR-15 Waveguide
