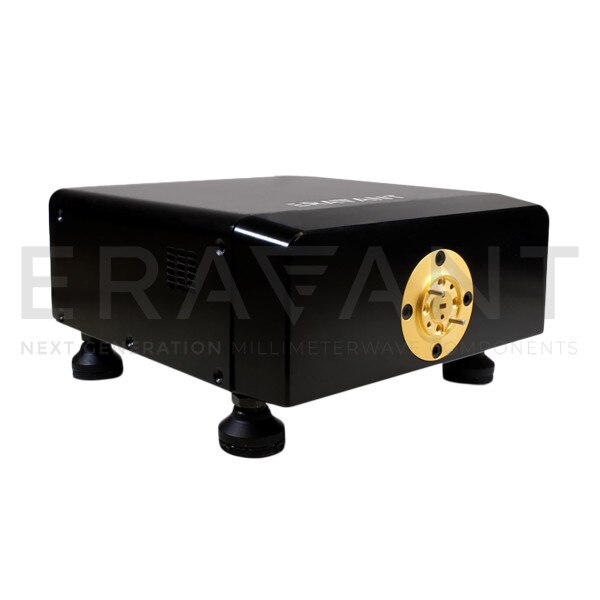

V-Band Down-Converter

50 to 75 GHz RF Input, 10 MHz to 1.6 GHz IF Output, WR-15 Waveguide
STC-20-15-S1 is a V-Band down-converter that converts millimeterwave signals from a frequency range of 50 to 75 GHz to the baseband at 10 MHz to 1.6 GHz. The down-converter requires 12.5 to 18.75 GHz at +3 dBm input power, which can be obtained from a standard 20 GHz synthesizer, such as Eravant model SOT-02220313200-SF-B6. The down-converter has low harmonic levels and excellent gain flatness, making it a good candidate to extend low frequency test equipment for millimeterwave testing purposes.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency50 GHz
Maximum RF Frequency75 GHz
Minimum IF Frequency10 MHz
Maximum IF Frequency1.6 GHz
Minimum LO Frequency12.5 GHz
Maximum LO Frequency18.75 GHz
Power Supply100 VAC to 240 VAC
RF PortWR-15 Waveguide
