Ka-Band Quadrature Mixer, Limited Run

30 to 40 GHz, DC to 5 GHz IF, +17 dBm LO Power, 2.92 mm (F)
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SFQ-20342315-KFKFSF-N1-M as an alternative solution. Read more about Limited Run Products here.

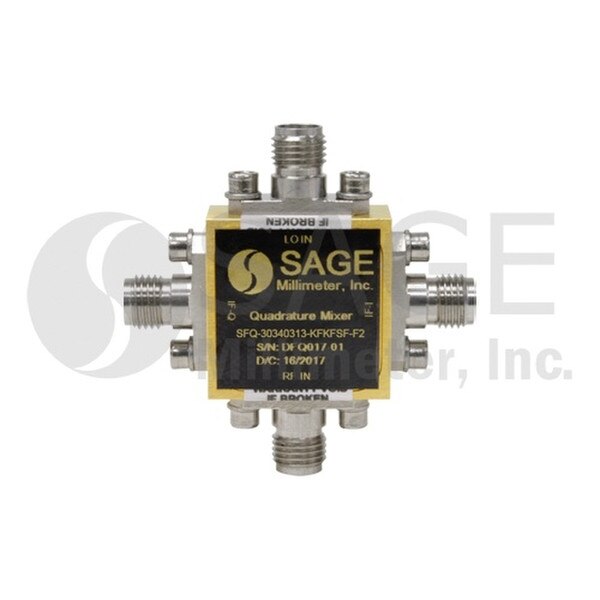

SFQ-30340313-KFKFSF-N1-M is a Ka Band quadrature mixer that covers the frequency range of 30 to 40 GHz. The typical conversion loss of the quadrature mixer is 13 dB with an LO driving power of +17 dBm. The typical LO to RF port isolation is 25 dB. Since the IF port of the quadrature mixer is DC coupled, the mixer can be used as a phase detector. In addition, the mixer can be readily configured into an image rejection mixer or single sideband modulator by adding an IF quadrature coupler.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency30 GHz
Maximum RF Frequency40 GHz
Minimum LO Frequency30 GHz
Maximum LO Frequency40 GHz
Minimum IF FrequencyDC
Maximum IF Frequency5 GHz
LO Pumping Power+17 dBm
Conversion Loss13 dB
RF Port2.92 mm (F)
