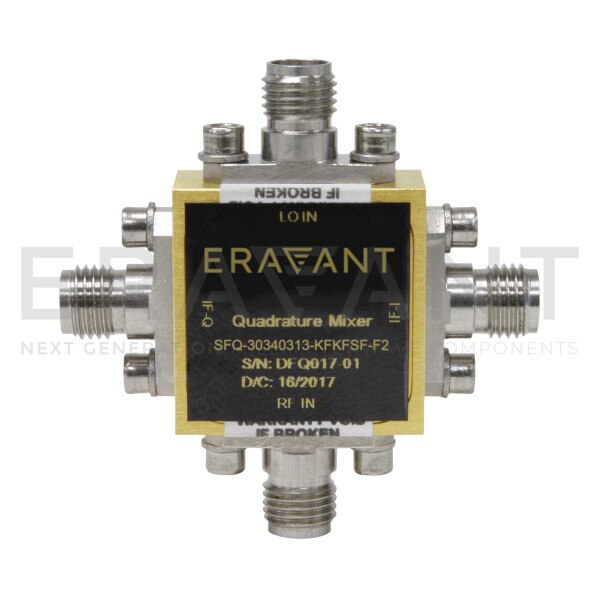

Broadband Quadrature Mixer

20 to 42 GHz, DC to 5 GHz IF, +18 dBm LO Power, 2.92 mm (F)
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SFQ-20342315-KFKFSF-N1-M is a broadband quadrature mixer that covers the frequency range of 20 to 42 GHz. The typical conversion loss of the quadrature mixer is 15 dB with an LO driving power of +18 dBm. The typical LO to RF port isolation is 35 dB. Since the IF port of the quadrature mixer is DC coupled, the mixer can be used as a phase detector. In addition, the mixer can be readily configured into an image rejection mixer or single sideband modulator by adding an IF quadrature coupler.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency20 GHz
Maximum RF Frequency42 GHz
Minimum LO Frequency20 GHz
Maximum LO Frequency42 GHz
Minimum IF FrequencyDC
Maximum IF Frequency5 GHz
LO Pumping Power+18 dBm
Conversion Loss15 dB
RF Port2.92 mm (F)
