WR-22 Waveguide Rectangular Horn Antenna

20 dBi Gain, 33 to 50 GHz, Q-Band
SKU:SAR-2013-22-S2
Availability:3 Days ARO

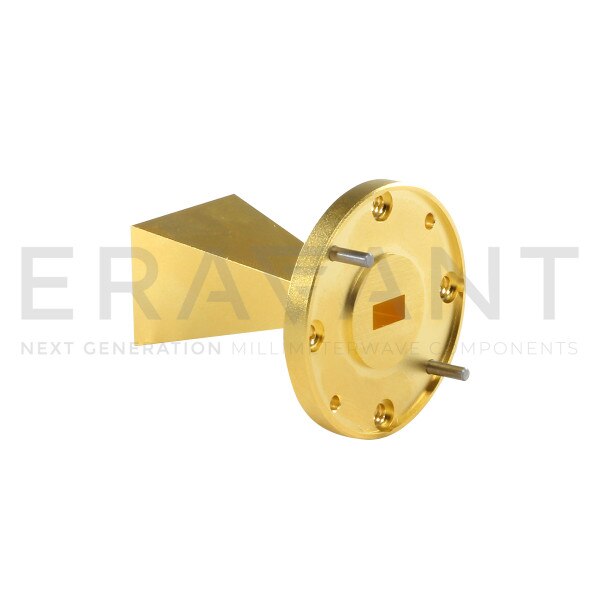

SAR-2013-22-S2 is a Q-band pyramidal horn antenna that operates from 33 to 50 GHz. The antenna offers 20 dBi nominal gain and a typical half power beamwidth of 15 degrees on the E-plane and 16 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-22 waveguide with UG-383/U flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

QuantityPrice
1 - 9$600.00
10 - 24$540.00
25 +$486.00

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Gain20 dBi
3 dB Beamwidth, E-Plane15°
3 dB Beamwidth, H-Plane16°
Return Loss23 dB
Antenna PortWR-22 Waveguide
