WR-22 Waveguide Rectangular Horn Antenna, Non Anti-Cocking, Limited Run

20 dBi Gain, 33 to 50 GHz, Q-Band
SKU:SAR-2013-22-S2-NAC
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SAR-2013-22-S2 as an alternative solution. Read more about Limited Run Products here.

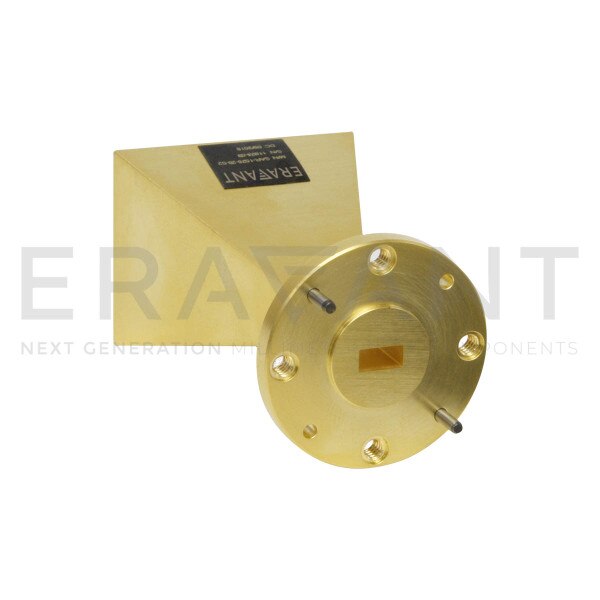

SAR-2013-22-S2-NAC is a Q-band pyramidal horn antenna that operates from 33 GHz to 50 GHz. The antenna offers a nominal 20 dBi gain and a typical half power beamwidth of 15 degrees on the E-plane and 16 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-22 waveguide with UG-383/U flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Gain20 dBi
3 dB Beamwidth, E-Plane15°
3 dB Beamwidth, H-Plane16°
Return Loss23 dB
Antenna PortWR-22 Waveguide
