X12 Frequency Extender, Product Discontinued

150 to 220 GHz, -3 dBm Output Power, WR-05 Waveguide, G-Band
SKU:STE-154224KF1205-N03-S1
This product has been improved and is now listed as STE-144224KF1205-05-S1. Read more about Limited Run Products here.

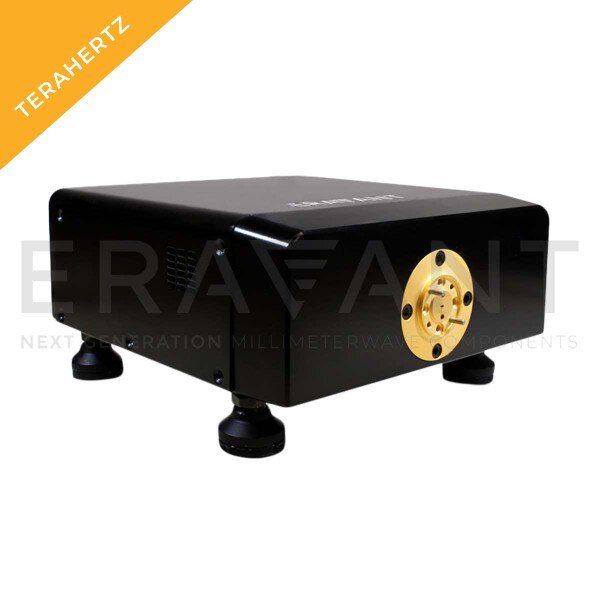

STE-154224KF1205-N03-S1 is a G-Band X12 frequency extender that uses an input frequency range of 12.5 to 18.3 GHz at +3 dBm along with harmonic generation and filtering to produce a 150 to 220 GHz RF signal. The extender is designed and manufactured as a bench top unit to extend the low frequency synthesizer or sweeper without losing all of the functionalities and features. The extender also features adjustable legs, which can also be removed, to allow for an easy test set up.
ECCN: 3A001.b.7
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Output Frequency150 GHz
Maximum Output Frequency220 GHz
Output Power-3 dBm
Minimum Input Frequency12.5 GHz
Maximum Input Frequency18.3 GHz
Input Power+3 dBm
Power Supply100 VAC to 240 VAC
Output PortWR-05 Waveguide
Input Port2.92 mm (F)
