X12 Frequency Extender

140 to 220 GHz, +5 dBm Output Power, WR-05 Waveguide, G-Band

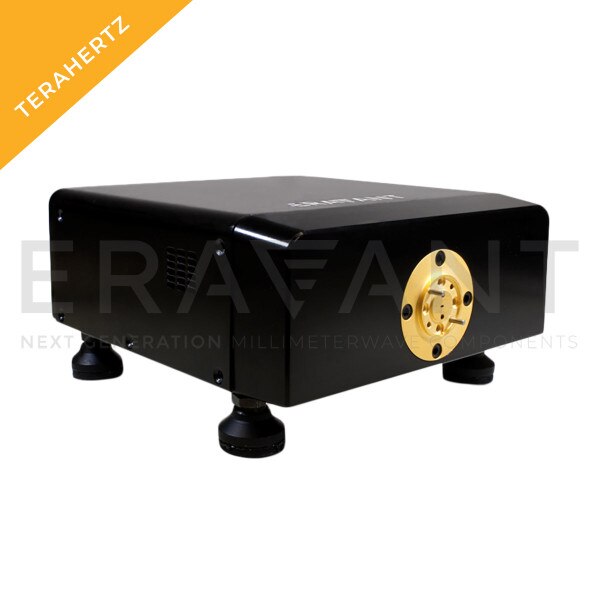

STE-144224KF1205-05-S1 is a G-Band X12 frequency extender that uses an input frequency range of 11.6 to 18.3 GHz at +3 dBm along with harmonic generation and filtering to produce a 140 to 220 GHz RF signal. The extender is designed and manufactured as a bench top unit to extend the low frequency synthesizer or sweeper without losing all of the functionalities and features. The extender also features adjustable legs, which can also be removed, to allow for an easy test set up.
ECCN: 3A001.b.7
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Output Frequency140 GHz
Maximum Output Frequency220 GHz
Output Power+5 dBm
Minimum Input Frequency11.6 GHz
Maximum Input Frequency18.3 GHz
Input Power+3 dBm
Power Supply100 VAC to 240 VAC
Output PortWR-05 Waveguide
Input Port2.92 mm (F)
