Broadband Dual-Polarized Quad-Ridged Horn, Limited Run

14 dBi Gain, 4 to 40 GHz, 30 dB Isolation, 2.92 mm (F)
SKU:SAV-0434031428-KF-U5-QR
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SAV-0634431050-2F-S1-QR as an alternative solution. Read more about Limited Run Products here.

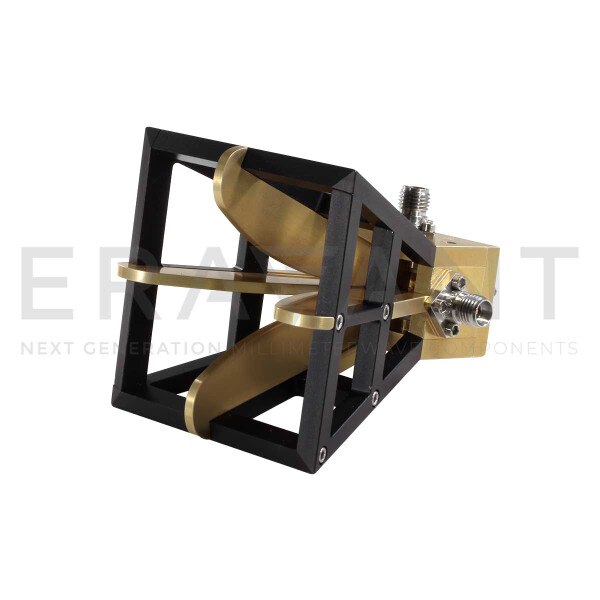

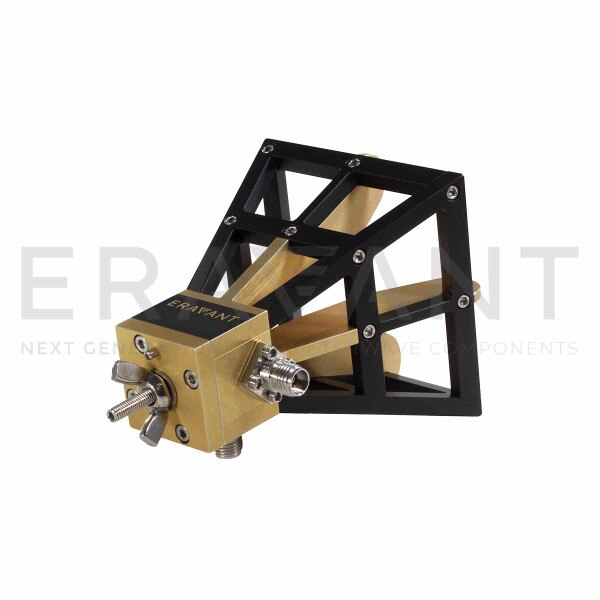

SAV-0434031428-KF-U5-QR is a quad-ridged, dual polarized broadband horn antenna that operates from 4 to 40 GHz. The antenna offers a typical gain of 14 dBi and a typical 3 dB beamwidth of 28° on both the E-plane and H-plane, respectively. The antenna supports both linear and circular polarized waveforms. The antenna features a compact design and provides an M3 screw and a mounting plate for flexible mounting capacity. The RF ports are equipped with two female 2.92 mm (K) connectors.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $3,200.00
3 - 4 $3,040.00
5 - 9 $2,888.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency4 GHz
Maximum Frequency40 GHz
Gain14 dbi
3 dB Beamwidth, E-plane28°
3 dB Beamwidth, H-plane28°
Return Loss10 dB
Antenna PortK (F)
