Broadband Dual-Polarized Quad-Ridged Horn

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0500GAIN-QR.
A 2D pattern measurement test is offered under service number FTA-0500PATT-QR.

CLICK HERE to read more about our antenna measurement capabilities.

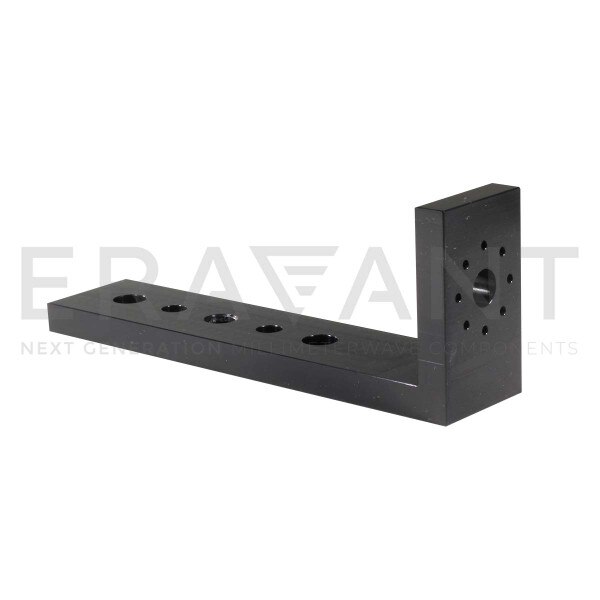

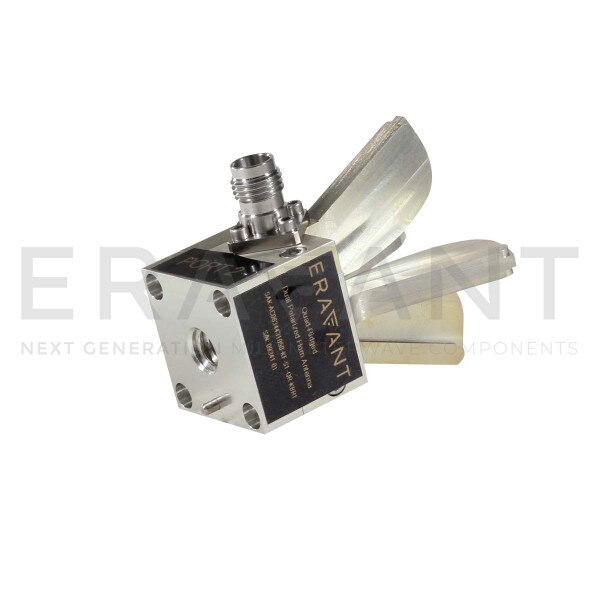

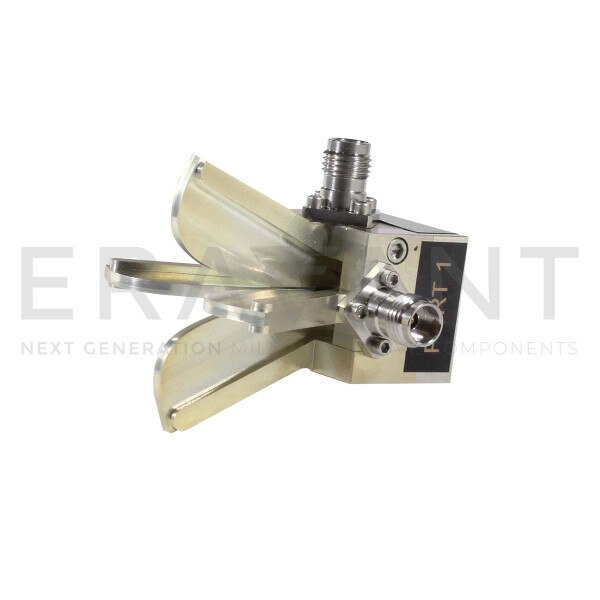

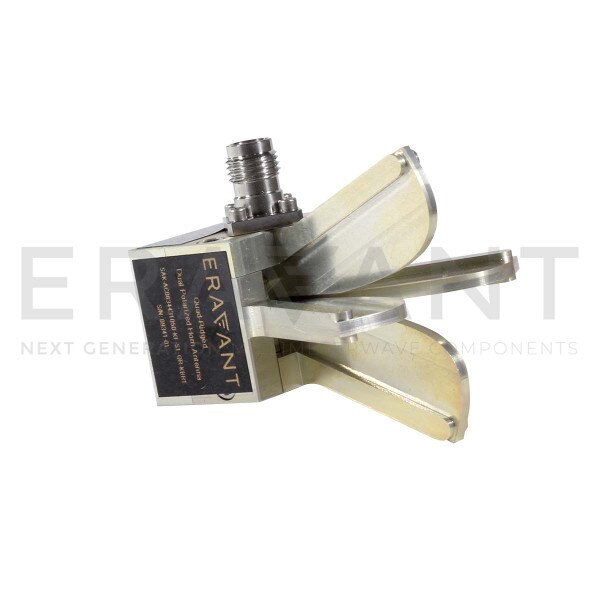

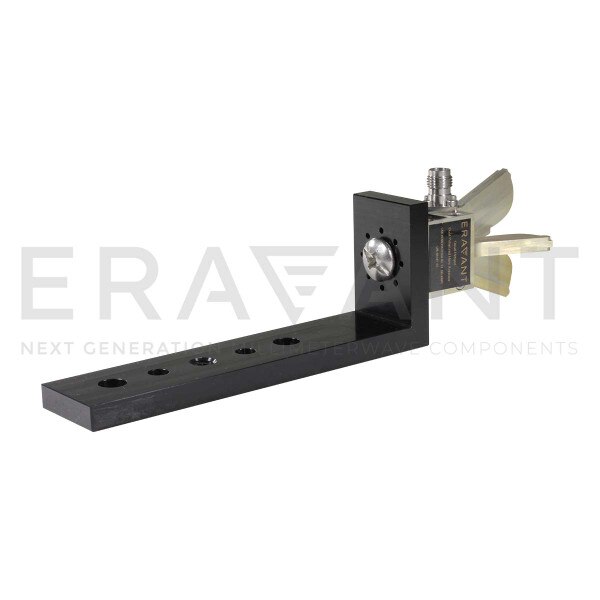

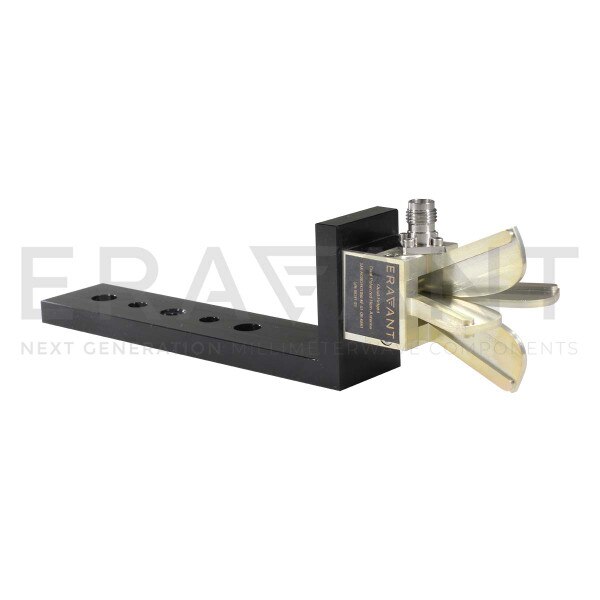

SAV-0634431050-2F-S1-QR is a quad-ridged, dual polarized broadband horn antenna that operates from 6 to 44 GHz. The antenna offers a typical half power beamwidth of 45 degrees on the E-plane and 55 degrees on the H-plane. The antenna supports both linear and circular polarized waveforms. The antenna includes an mounting plate with a 1/4-20 threaded hole and various other mounting holes for flexible mounting capacity. The RF ports are equipped with two female 2.4 mm connectors.
