Vector Network Analyzer Waveguide Calibration Kit

WR-42, K-Band, 18 to 26.5 GHz
Availability:IN STOCKPlease contact us if you need more units than what is available online.

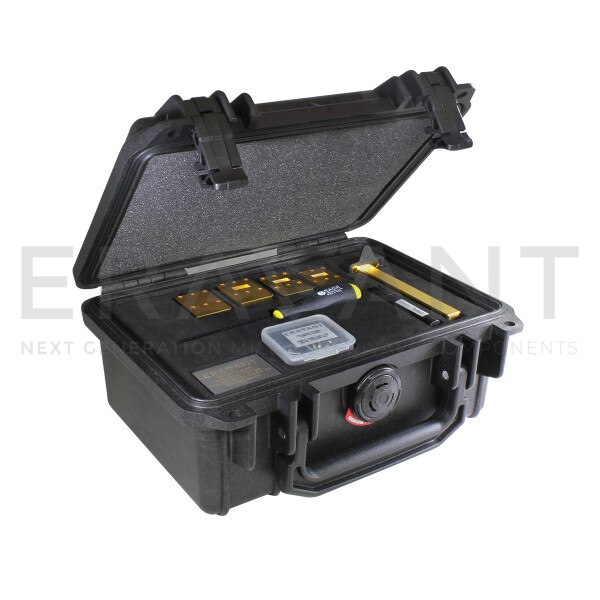

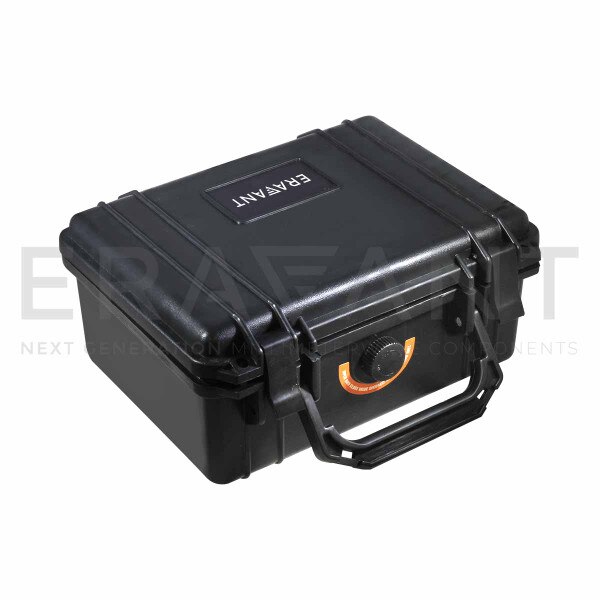

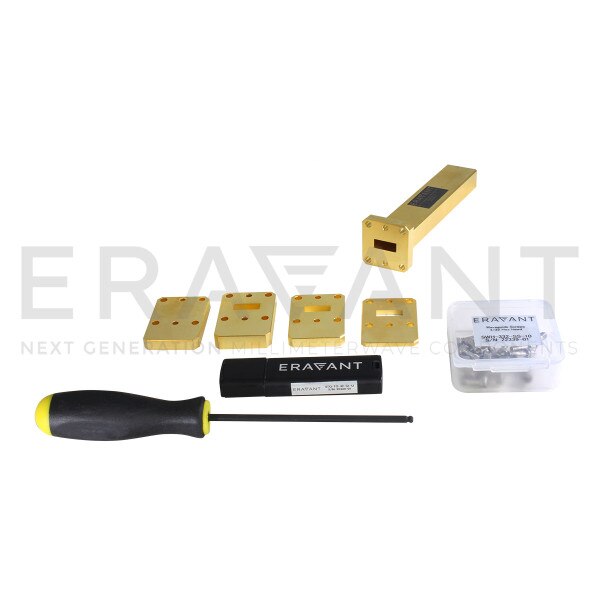

STQ-TO-42-S1-CKIT1 is a metrology grade K-band waveguide vector network analyzer (VNA) calibration kit designed to work with industry standard network analyzers in the frequency range of 18 to 26.5 GHz. The calibration kit consists of one fixed short, one fixed matching load, waveguide shims (⅛ λg, ¼ λg, ⅜ λg offsets), ten 3/32 hex head waveguide screws, six 3/32 hex head extended waveguide screws, four alignment dowel pins, a 3/32” hex waveguide screw driver and one calibration data USB drive. The calibration kit is collected in a ruggedized box and is an ideal higher performance metrology grade calibration set for VNA system calibrations. The calibration kit can be offered with NIST traceable calibration data and certification for an added fee.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Frequency Range18 to 26.5 GHz

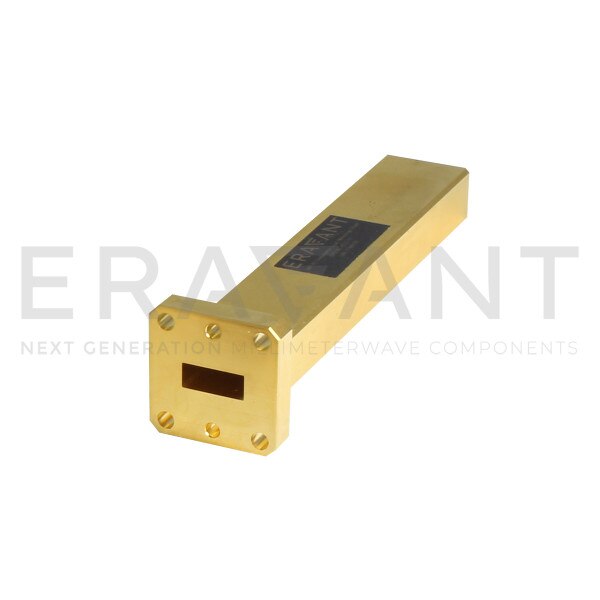

Components IncludedMetrology Fixed Short
Metrology Fixed Waveguide Load

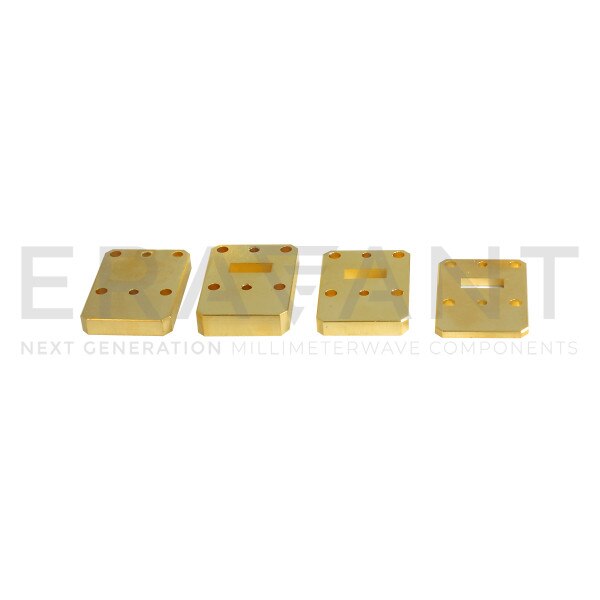

Metrology ⅛ Wavelength Offset
Metrology ¼ Wavelength Offset
Metrology ⅜ Wavelength Offset

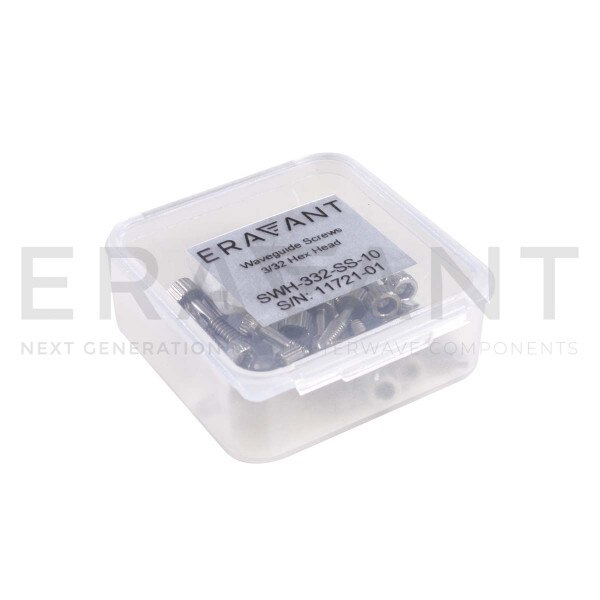

Waveguide Screws, 3/32 Hex Head
Extended Waveguide Screws, 3/32 Hex Head
Alignment Dowel Pins
Waveguide Screw Driver, 3/32 Hex Head

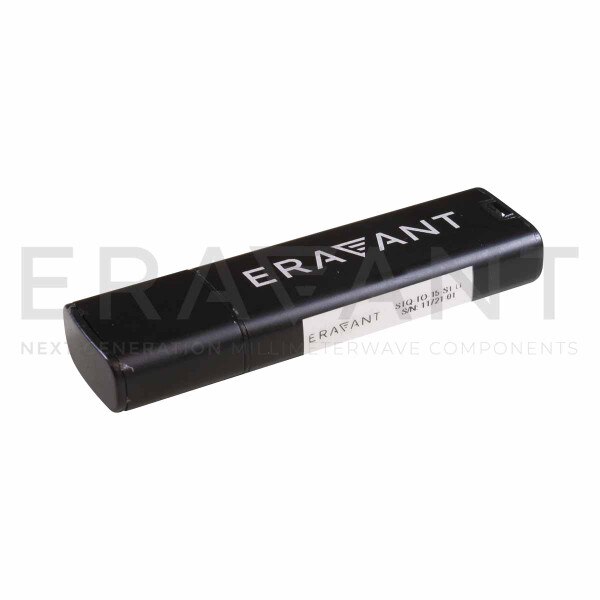

Calibration Data, USB Drive
Electrical SpecificationsFixed Load VSWR:1.03:1 Max
Fixed Load Power Handling:0.2 Watts Max
Adapter VSWR:1.20:1 Max
