90° E-Plane Waveguide Bend, Non Anti-Cocking, Limited Run

WR-10 Waveguide, W-Band, 1.0" Bend Radius
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SWB-10090-EB-1.0 as an alternative solution. Read more about Limited Run Products here.

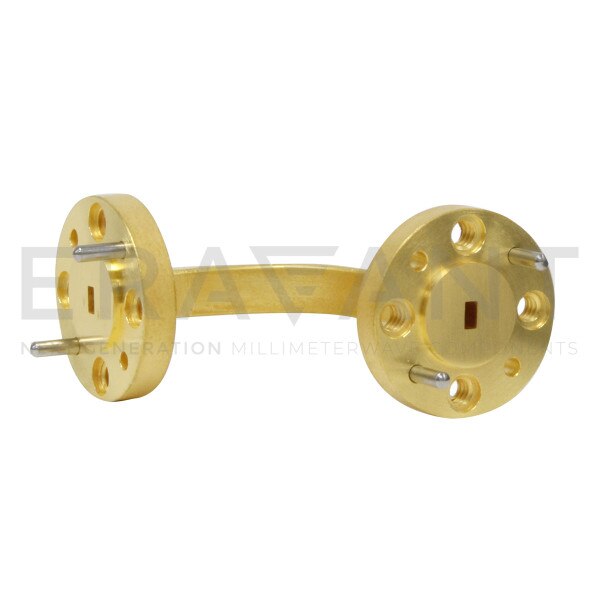

SWB-10090-EB-NAC-1.0 is a 90 degree, WR-10 E-plane waveguide bend with UG-387/U-M circular flanges. The bend radius is 1.0”. The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 75 to 110 GHz.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $128.00
25 - 49 $115.20
50 - 99 $103.68

Bulk Availability


Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Angle90 Degrees
OrientationE-Plane Bend
Bend Radius/Length1.0"
Waveguide SizeWR-10
