WR-10 Waveguide Open

W-Band, Fixed
SKU:SWO-10-F1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

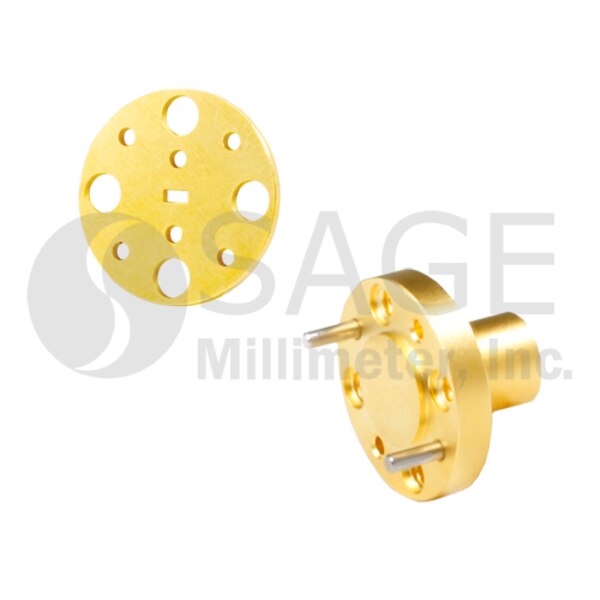

SWO-10-F1 is a fixed waveguide open with a UG-387/U-M flange covering the frequency range from 75 to 110 GHz. The product consists of a waveguide short (model number SWS-VG-F1) and a ¼ ?g waveguide shim (model number SWI-10041-SB). The waveguide shim is 0.041" thick offering perfect open at the center frequency of 92.5 GHz when combined with the waveguide short. The product is manufactured with a precision machining process to ensure high quality and ruggedness. The open offers good reflection in the entire frequency range.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 24$330.00
25 - 49$297.00
50 +$267.30

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Length0.041"
Waveguide FlangeUG-387/U-M Flange
Waveguide Short TypeFixed
