Vector Network Analyzer Waveguide Calibration Kit

WR-08, F-Band, 90 to 140 GHz
Availability:6 to 8 Weeks ARO

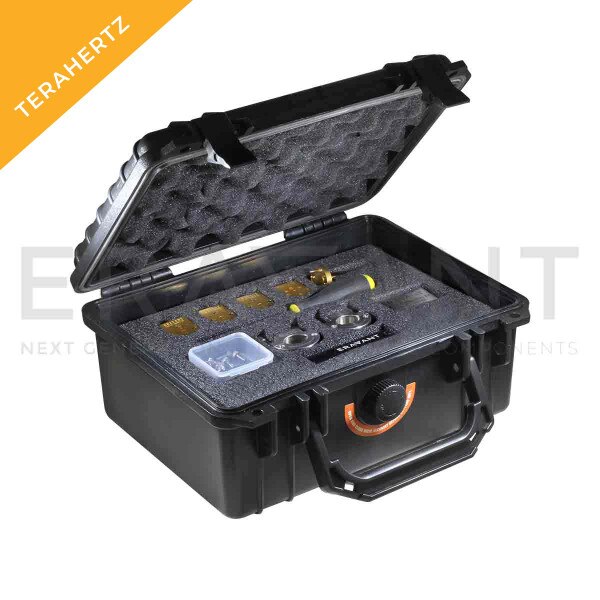

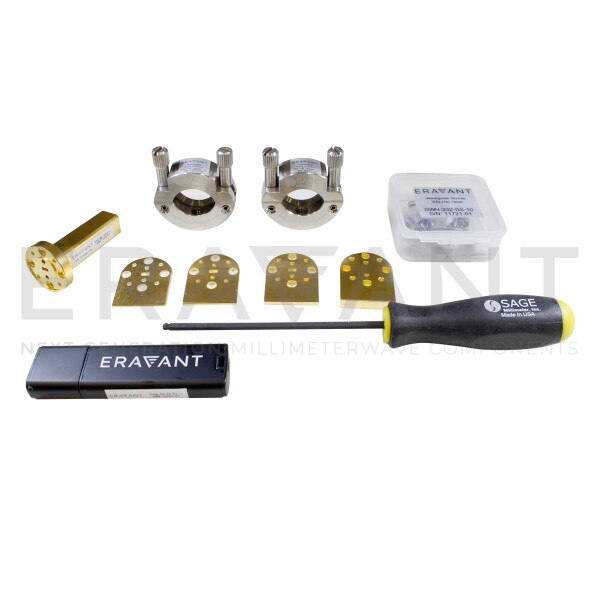

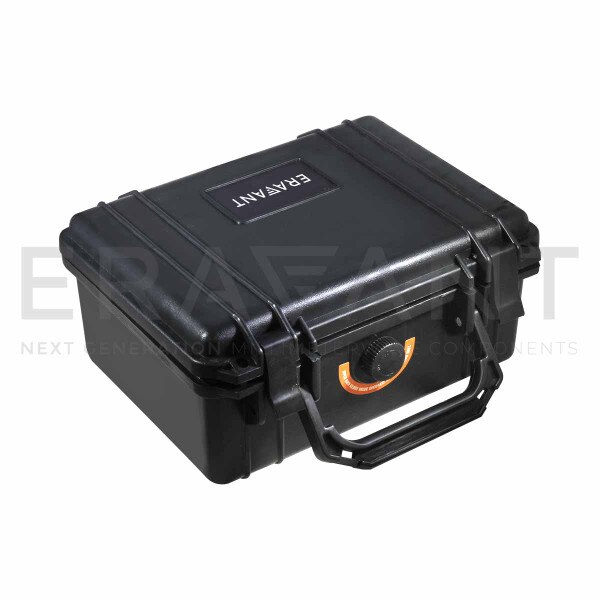

STQ-TO-08-S1-CKIT1 is a metrology grade F-band waveguide vector network analyzer (VNA) calibration kit designed to work with industry standard network analyzers in the frequency range of 90 to 140 GHz. The calibration kit consists of one fixed short, one fixed matching load, waveguide shims (⅛λg, ¼λg, ⅜ λg offsets), two waveguide quick connects, ten 3/32 hex head waveguide screws, six 3/32 hex head extended waveguide screws, four alignment dowel pins, a 3/32” hex waveguide screw driver and one calibration data USB drive. The calibration kit is collected in a ruggedized box and is an ideal higher performance metrology grade calibration set for VNA system calibrations.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $3,700.00
3 - 4 $3,515.00
5 - 9 $3,339.25

Bulk Availability


Bulk Pricing

Login to view pricing

Technical Details

Frequency Range90 to 140 GHz
Components IncludedMetrology Fixed Short

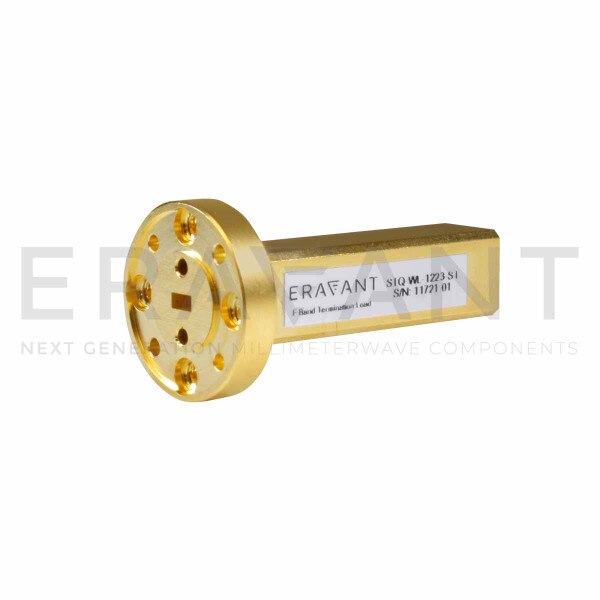

Metrology Fixed Waveguide Load

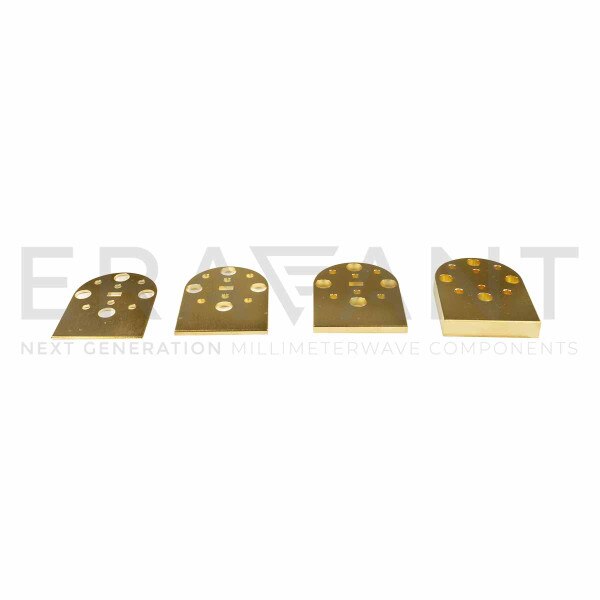

Metrology ⅛ Wavelength Offset
Metrology ¼ Wavelength Offset
Metrology ⅜ Wavelength Offset

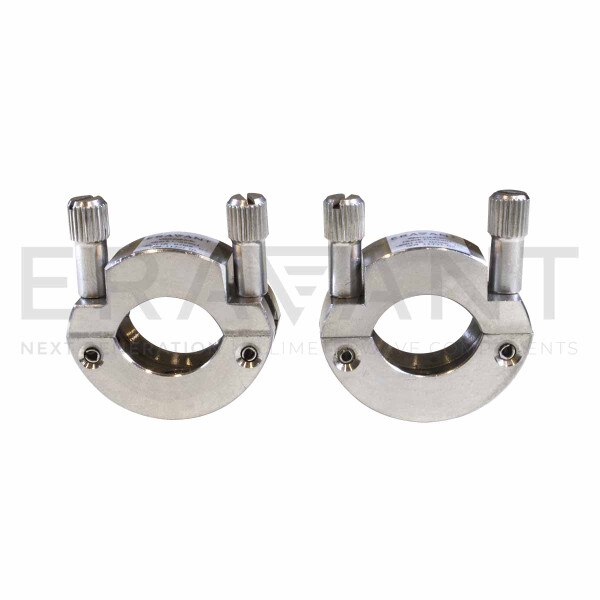

Waveguide Quick Connect, 0.75" Diameter Flange

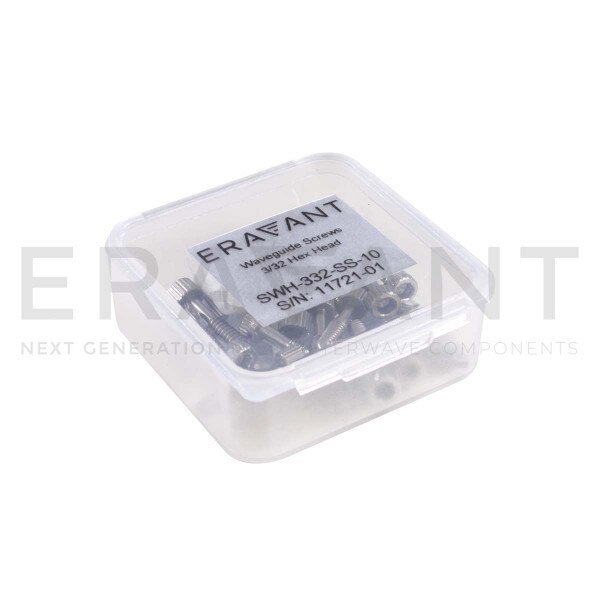

Waveguide Screws, 3/32 Hex Head
Extended Waveguide Screws, 3/32 Hex Head
Alignment Dowel Pins
Waveguide Screw Driver, 3/32 Hex Head

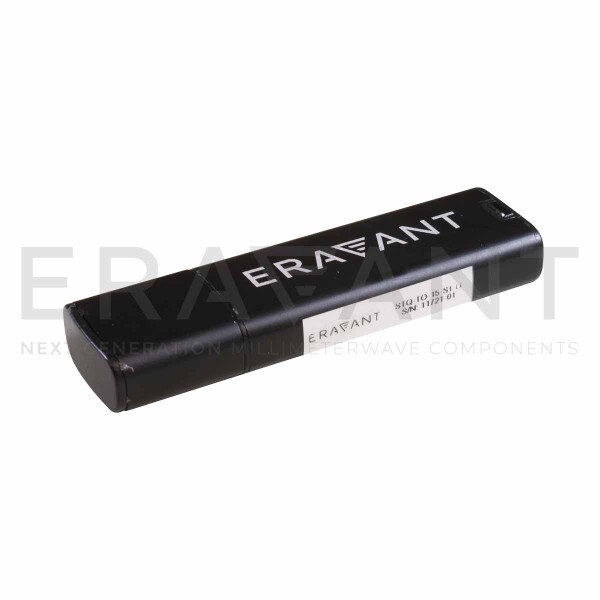

Calibration Data, USB Drive
Electrical SpecificationsFixed Load VSWR:1.065:1 Max
Fixed Load Power Handling:0.2 Watts Max
