90° Waveguide Twist

WR-04 Waveguide, WR-04 Band, 1.0" Insertion Length
SKU:SWB-04090-TB-1.0
Availability:3 to 4 Weeks ARO

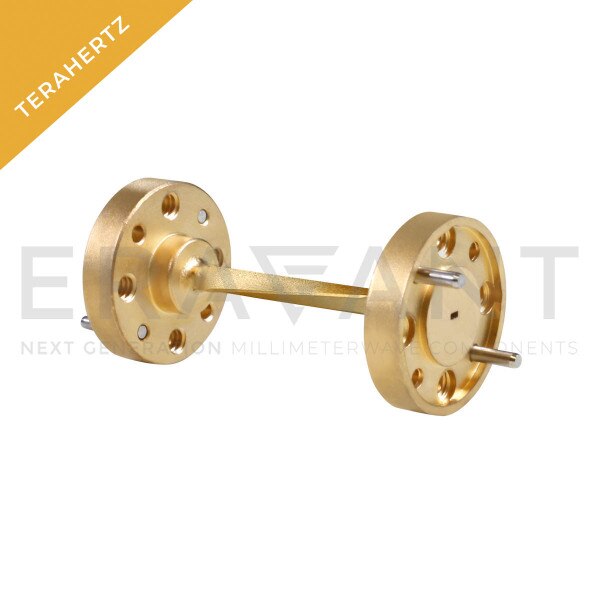

SWB-04090-TB-1.0 is a 90 degree, WR-04 waveguide twist with UG-387/U-M Anti-Cocking Flange flange. The length of the twist is 1.0”. The waveguide twist is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 170 to 260 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $440.00
25 - 49 $396.00
50 - 99 $356.40

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency170 GHz
Maximum Frequency260 GHz
Angle90 Degrees
OrientationTwist
Bend Radius/Length1.00"
Waveguide SizeWR-04
