Bulkhead Coaxial Adapter

DC to 90 GHz, 1.35 mm (F) to 1.35 mm (F), Thermal Vacuum Safe
SKU:SCT-EFEF-UB-B-V

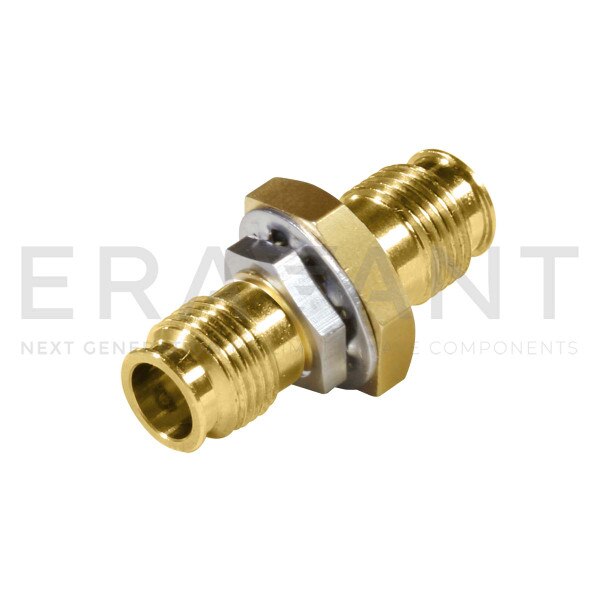

SCT-EFEF-UB-B-V is a 1.35 mm female to 1.35 mm female hermetically sealed bulkhead type coaxial adapter that covers the frequency range from DC to 90 GHz. The bulkhead adapter uses a glass bead and O-ring seal to provide a hermetically sealed RF interface between the vacuum and atmospheric environments. It is ideal for use as a coaxial RF feedthrough for testing in vacuum environments, such as a thermal vacuum chamber. It can also be used for other applications where an airtight vacuum seal is required. The bulkhead configuration gives mounting flexibility for a variety of mounting plates and flanges, such as ConFlat (CF) and KF vacuum flanges. Other configurations are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,080.00
5 - 9 $972.00
10 - 24 $874.80

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency90 GHz
Insertion Loss-
Return Loss12 dB
Impedance50 Ohms
Connector GenderFemale to Female
Connector Series1.35 mm to 1.35 mm
ConfigurationPanel Mount (Bulkhead)
