Coaxial Cable Assembly, Limited Run

DC to 60 GHz, 1.85 mm (M) to 1.85 mm (M), 3", Semi-Rigid
SKU:SCW-VMVM003-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SCW-VMVM003-S2 as an alternative solution. Read more about Limited Run Products here.

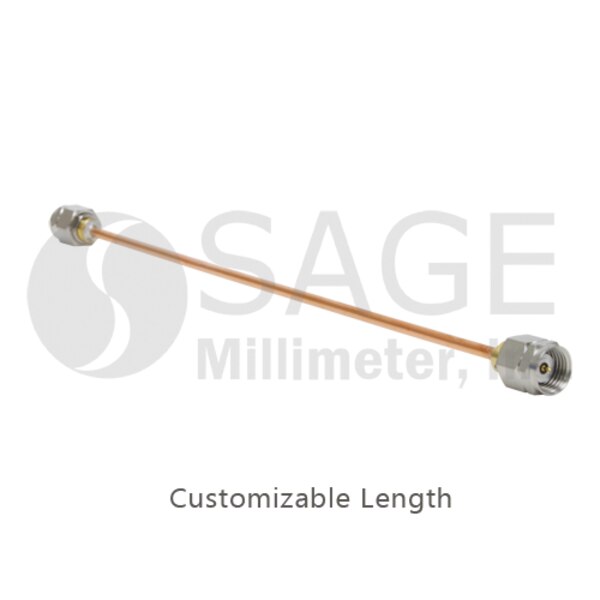

SCW-VMVM003-S1 is a 3” long, semi-rigid coaxial cable with 1.85 (V) mm male connectors that cover the frequency range of DC to 60 GHz. The coaxial cable utilizes high performance material and a precision manufacturing process to guarantee superior microwave performance and mechanical durability. The impedance of the cable is 50 ohms. Other lengths are offered under different models.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency60 GHz
Return Loss16 dB
Impedance50 Ohms
Cable Length3"
Cable TypeSemi-Rigid
Cable Outer Diameter0.087"
Minimum Bending Radius0.126"
Connectors1.85 mm (M)
