Coaxial Cable Assembly Phase Matched

DC to 50 GHz, 2.4 mm (M) to 2.4 mm (M), 60", Semi-Rigid
SKU:SCW-2M2M060-S1-PM
Availability:3 to 4 Weeks ARO

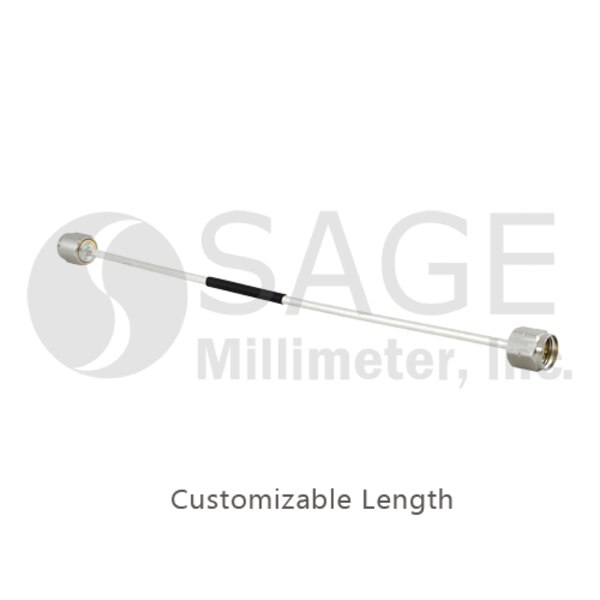

SCW-2M2M060-S1-PM is a 60" long, semi-rigid, phase matched coaxial cable with 2.4 mm male connectors that cover the frequency range of DC to 50 GHz. The coaxial cable utilizes high performance material and a precision manufacturing process to guarantee superior microwave performance and mechanical durability. The impedance of the cable is 50 ohms. Other lengths are offered under different models.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 24$410.00
25 - 49$369.00
50 - 99$332.10

Bulk Pricing

Login to View Pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency50 GHz
Return Loss17 dB
Impedance50 Ohms
Cable Length60"
Cable TypeSemi-Rigid
Cable Outer Diameter0.087"
Minimum Bending Radius0.126"
Connectors2.4 mm (M)
