Ka-Band Transmitter

DC to 12 GHz IF, 24 to 42 GHz RF, 12 to 21 GHz LO
SKU:SST-3331832025-28-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

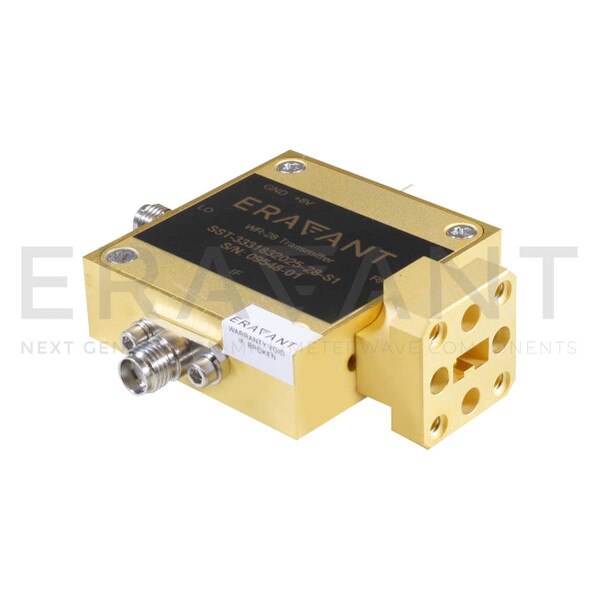

SST-3331832025-28-S1 is an integrated transmitter module. The transmitter has a typical conversion gain of 25 dB with a typical P1dB of +20 dBm in the frequency range of 24 to 42 GHz. The required LO power is 0 dBm between frequencies of 12 and 21 GHz. The RF Receive port is WR-28 Uni-Guide™ Waveguide with UG-599/U Flange while the LO port is female 2.92mm (K) connectors. Other port configurations, are also available under different model numbers such SST-3331832025-KF-S1.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $4,350.00
3 - 4 $4,132.50
5 - 9 $3,925.88

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

RF Output Minimum Frequency24 GHz
RF Output Maximum Frequency42 GHz
P1dB+20 dB
Conversion Gain25 dB
LO Frequency12 GHz
LO Input Power0 dBm
Bias Voltage8 VDC
RF PortWR-28 Waveguide
