Coaxial Transmitter

DC to 12 GHz IF, 24 to 42 GHz RF, 12 to 21 GHz LO
SKU:SST-3331832025-KF-S1
Availability:4 to 6 Weeks ARO

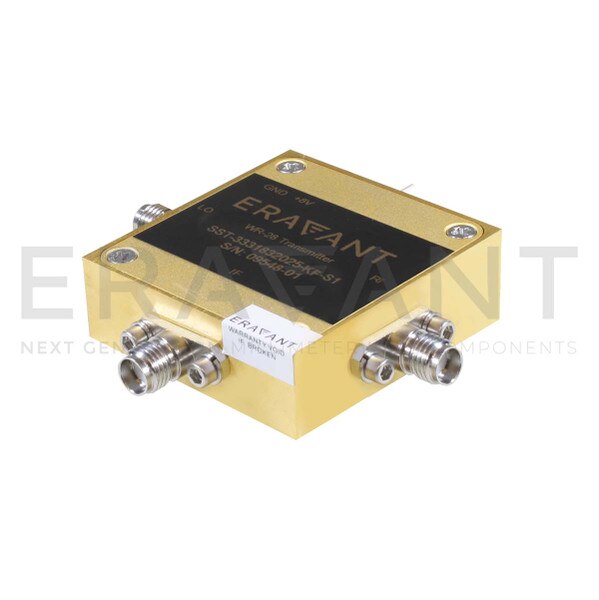

SST-3331832025-KF-S1 is a coaxial integrated transmitter module. The transmitter has a typical conversion gain of 25 dB with a typical P1dB of +20 dBm in the frequency range of 24 to 42 GHz. The required LO power is 0 dBm between frequencies of 12 and 21 GHz. The input and output ports are both equipped with female 2.92mm (K) connectors. Other port configurations, such as WR-28 waveguides are also available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 2 $4,350.00
3 - 4 $4,132.50
5 - 9 $3,925.88

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

RF Output Minimum Frequency24 GHz
RF Output Maximum Frequency42 GHz
P1dB+20 dB
Conversion Gain25 dB
LO Frequency12 GHz
LO Input Power0 dBm
Bias Voltage8 VDC
RF Port2.92 mm Female
