W-Band Image Rejection Receiver

92 to 96 GHz, 5 dB Noise Figure, 30 dB RF to IF Conversion Gain

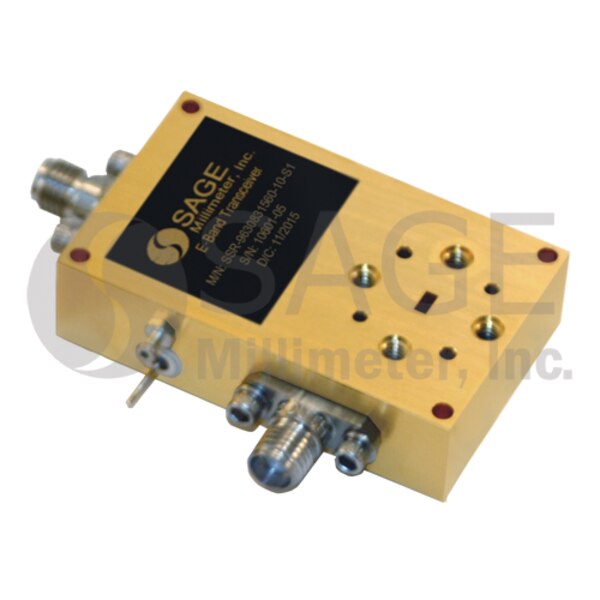

SSR-9430434030-10-M1-I is a W-Band image rejected receiver. The receiver has a typical conversion gain of 30 dB with a typical RF input power of -60 dBm in the frequency range of 92 to 96 GHz and a IF output frequency range of 4 to 8 GHz. The receiver has a build in x8 multiplier, which requires the typical input LO power and frequency of +5 dBm and 11 GHz, respectively. With the build-in IF hybrid, the receiver offers 20 dB image rejection level typically. The LO and IF port are both equipped with female SMA connectors and the RF port is a WR-10 waveguide with a UG-387/U-M flange.
ECCN: 3A001.b.7
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency92 GHz
Maximum RF Frequency96 GHz
Noise Figure5 dB
Gain30 dB
LO Frequency11 GHz
LO Input Power5 dBm
Bias Voltage8 VDC
RF PortWR-10 Waveguide
