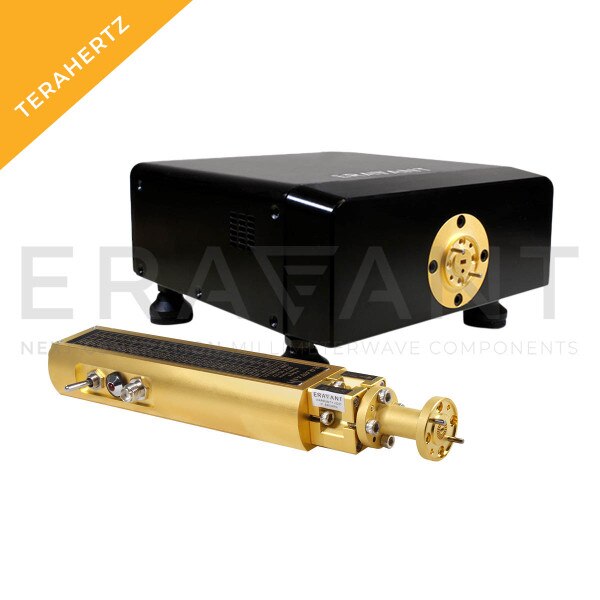

F-Band Noise Figure and Gain Test Extenders

90 to 140 GHz, WR-08 Waveguide
SKU:STG-08-S1
Availability:6 to 8 Weeks ARO
STG-08-S1 is a full F-Band noise figure and gain test extender that extends the noise and gain measurement capabilities of common and low frequency signal synthesizers and noise figure meters to the frequency range of 90 to 140 GHz. This extender is designed to interface with industry standard noise and gain test systems. It can also interface with any noise and gain analyzers in the 10.0 MHz to 1.6 GHz frequency range.
ECCN: 3A001.b.7.c.1
Login to view pricing

Bulk Pricing

QuantityPrice
1 - 1$30,850.00
2 - 2$29,307.50
3 +$27,842.13

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency90 GHz
Maximum RF Frequency140 GHz
Noise Source ENR12 dB
Down-converter Minimum IF Frequency10 MHz
Down-converter Maximum IF Frequency1.6 GHz
Down-converter Gain20 dB
Down-converter Noise Figure15 dB
Down-converter Bias+12 VDC/450 mA
RF PortWR-08 Waveguide
