F-Band Externally Biased Balanced Upconverter

90 to 140 GHz, DC to 20 GHz IF, +3 dBm LO Power, WR-08 Waveguide
Availability:IN STOCKPlease contact us if you need more units than what is available online.

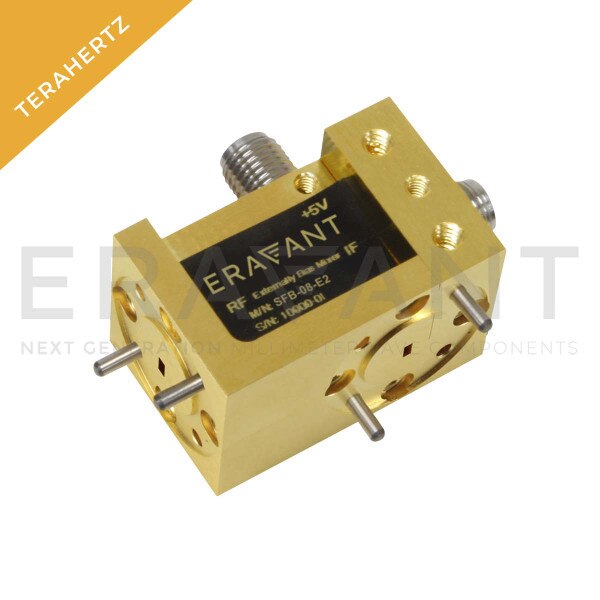

SFU-08-E2 is an F-Band, externally biased, balanced upconverter. The upconverter supports the full waveguide band operation for both LO and RF frequencies from 90 to 140 GHz with an extremely broad IF output from DC to 20 GHz. The upconverter offers a typical conversion loss of 13 dB and a high IF to LO port isolation. The main advantage of using an externally biased upconverter is that it only requires a local oscillator (LO) power of 0 to +5 dBm when a bias of +5 VDC is applied. This eliminates the need for an expensive local oscillator, making system integrations more affordable.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency90 GHz
Maximum RF Frequency140 GHz
Minimum LO Frequency90 GHz
Maximum LO Frequency140 GHz
Minimum IF FrequencyDC
Maximum IF Frequency20 GHz
LO Pumping Power+3 dBm
Conversion Loss13 dB
RF PortWR-08 Waveguide
