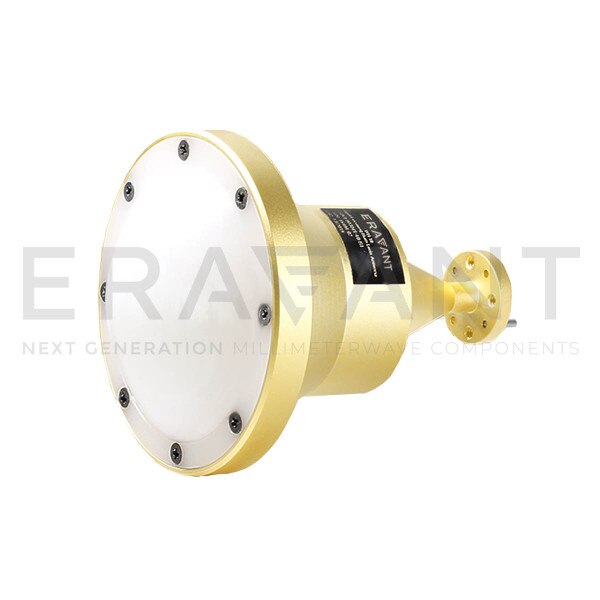

W-Band Spot-Focusing Lens Antenna

SAQ-903071-10-S1 is a W-band, spot-focusing lens antenna that delivers a 10 dB spot size of 0.80" at a focal length of 7.09". The antenna employs a low loss lens to offer excellent aperture efficiency at 90 GHz. The lens antenna is equipped with a standard WR-10 waveguide and UG-387/U-M flange as its input port. It supports linear polarized waveforms. For the intended application, it is recommended that customers purchase spot-focusing antennas (SAQ Series) in a pair of two (Qty. 2).
