E-Band Junction Circulator, Wellprice

This is a Wellprice model that has been discounted for small cosmetic blemishes that do not affect longevity or performance. Customers who cannot accept any blemishes should consider the full-priced model SNW-7638130818-12-C1 as an alternative solution. Read more about Wellprice Products here.

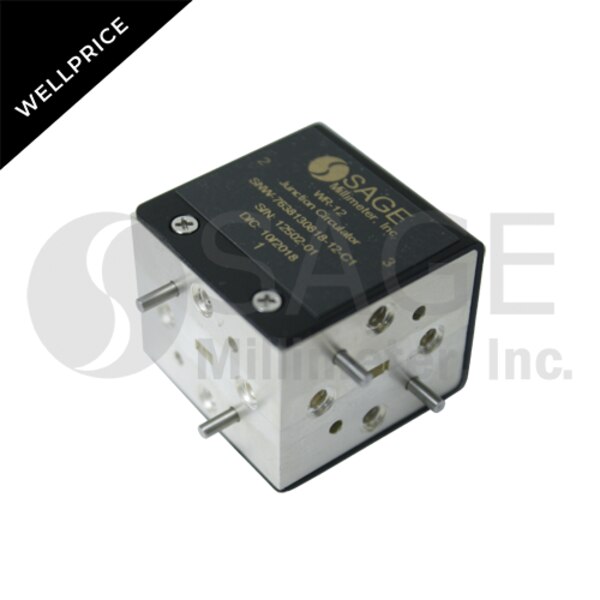

SNW-7638130816-12-CH-WPC is an E band waveguide junction circulator that covers the frequency range of 76 to 81 GHz. The circulator is a key component in any radar and communication system where the duplexing functions are required. The waveguide junction circulator is manufactured to offer the highest performance. The circulator is designed and manufactured to provide a low insertion loss of 0.8 dB and an isolation of 16 dB typically, which offers the broadest bandwidth in the class. The compact dimension guarantees the compact system integration. The RF ports are WR-12 waveguides with UG-387/U flanges.
