E-Band Junction Circulator

76 to 81 GHz, 18 dB Isolation, WR-12 Waveguide
SKU:SNW-7638130818-12-C1
Availability:3 Days ARO

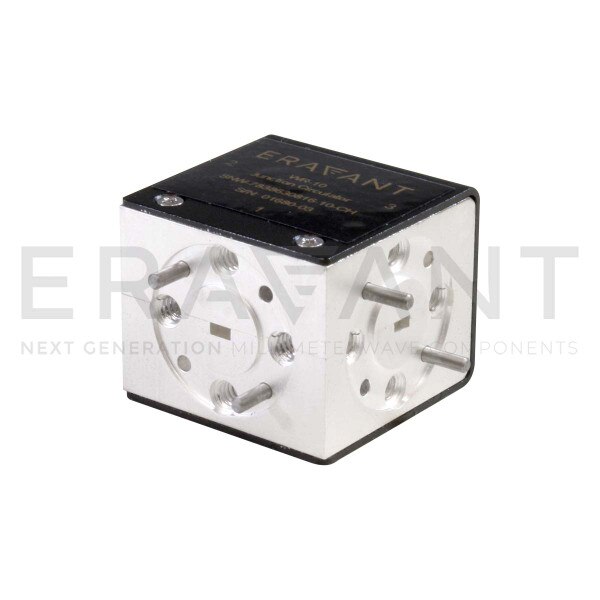

SNW-7638130818-12-C1 is an E band waveguide junction circulator that covers the frequency range of 76 to 81 GHz. The circulator is a key component in any radar and communication system where the duplexing functions are required. The waveguide junction circulator is manufactured to offer the highest performance. The circulator is designed and manufactured to provide a low insertion loss of 0.8 dB and an isolation of 18 dB typically, which offers the broadest bandwidth in the class. The compact dimension guarantees the compact system integration. The RF ports are WR-12 waveguides with UG-387/U flanges.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,200.00
5 - 9$1,080.00
10 - 24$972.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency76 GHz
Maximum Frequency81 GHz
Insertion Loss0.8 dB
Isolation18 dB
Return Loss15 dB
Forward Power Handling3 W (CW)
Reverse Power Handling1 W (CW)
RF PortWR-12 Waveguide
Device TypeCirculator
