E-Band Junction Circulator, Limited Run

76 to 81 GHz, 16 dB Isolation, WR-12 Waveguide
SKU:SNW-7638130816-12-CH
Availability:4 to 6 Weeks ARO
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SNW-7638130818-12-C1 as an alternative solution. Read more about Limited Run Products here.

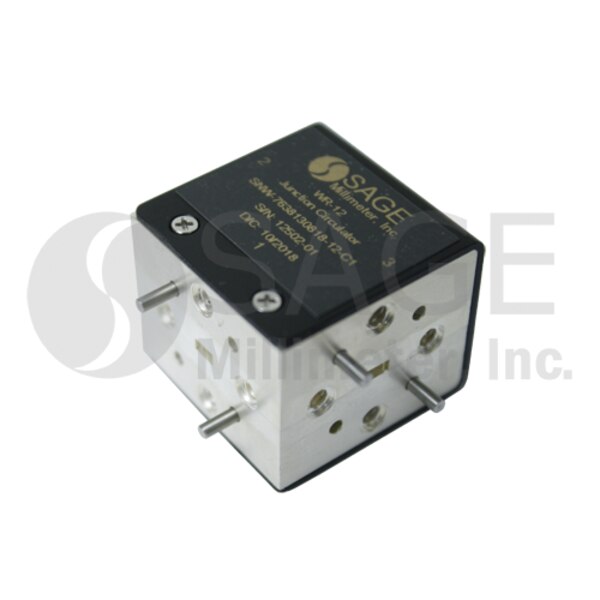

SNW-7638130816-12-CH is an E band waveguide junction circulator that covers the frequency range of 76 to 81 GHz. The circulator is a key component in any radar and communication system where the duplexing functions are required. The waveguide junction circulator is manufactured to offer the highest performance. The circulator is designed and manufactured to provide a low insertion loss of 0.8 dB and an isolation of 16 dB typically, which offers the broadest bandwidth in the class. The compact dimension guarantees the compact system integration. The RF ports are WR-12 waveguides with UG-387/U flanges.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 9 $930.00
10 - 24 $837.00
25 - 49 $753.30

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency76 GHz
Maximum Frequency81 GHz
Insertion Loss0.8 dB
Isolation16 dB
Return Loss15 dB
Forward Power Handling3 W (CW)
RF PortWR-12 Waveguide
Device TypeCirculator
