W-Band Noise Source with Faraday Isolator

75 to 116 GHz, 12 dB High ENR, WR-10 Waveguide
SKU:STZ-75312412-10-I1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

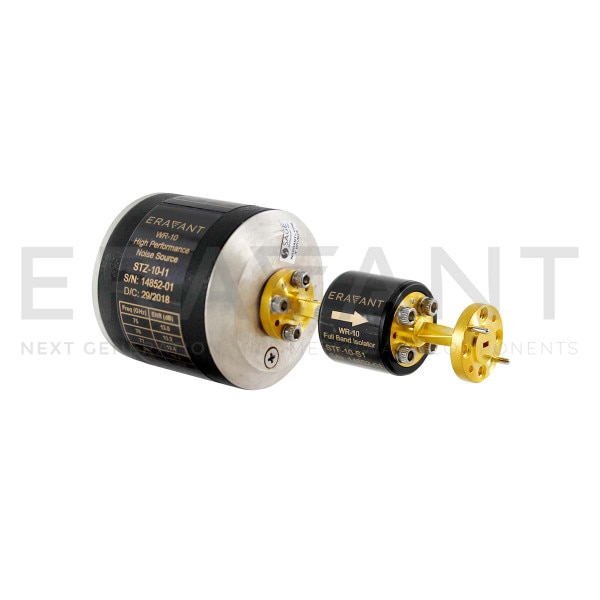

STZ-75312412-10-I1 is an extended W-Band noise source that delivers a 12 dB ENR with extreme flatness across the frequency range of 75 to 116 GHz. The noise source is integrated with SAGE Millimeter’s high-quality Faraday isolator (STF-10-S1) to improve the port return loss and load pull for more reliable and accurate noise figure measurements. The noise source can work in either CW or pulse AM mode by applying a TTL triggering signal via a female SMA connector. This feature can also be used in automatic test systems to remotely turn the noise source on and off. In addition, a toggle switch (power/triggering inversion switch) is provided to turn the noise source on and off manually.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 $11,400.00
2 $10,830.00
3 - 4 $10,288.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency116 GHz
ENR12 dB
ENR Flatness±1.5 dB
Temperature Stability0.01 dB/°C
Long Term Temperature Stability0.05 dB/day
DC Bias+28 VDC/60 mA
RF OutputWR-10 Waveguide
