W-Band Spot-Focusing Lens Antenna

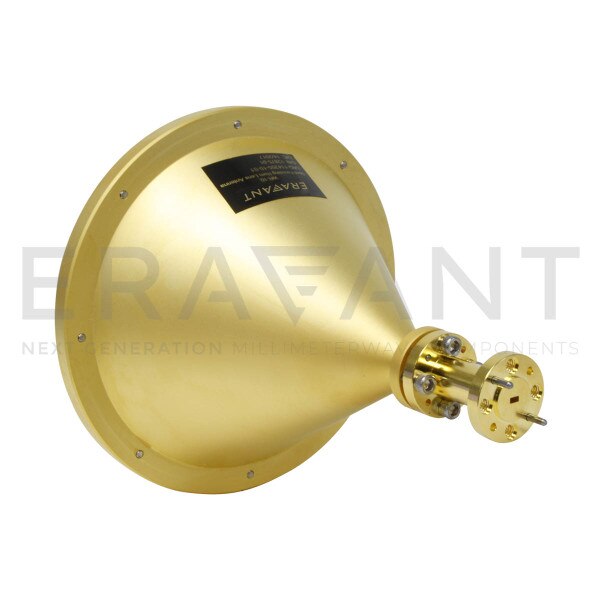

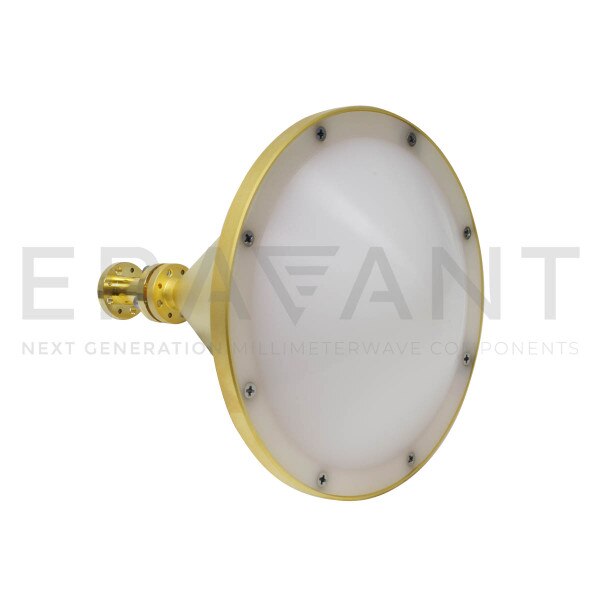

SAQ-903017-10-S1 is a WR-10 spot-focusing lens antenna that delivers a typical 10 dB spot size of 0.2" at the focal length of 1.7", and a typical return loss of 15 dB across the full WR-10 waveguide operating bandwidth. The spot-focusing lens antenna is equipped with a WR-10 waveguide and UG-387/U-M flange as its antenna port. It supports linear polarized waveforms. For the intended application, it is recommended that customers purchase spot-focusing antennas (SAQ Series) in a pair of two (Qty. 2).
