W-Band Quadrature Mixer

75 to 108 GHz, DC to 20 GHz IF, +15 dBm LO Power, WR-10 Waveguide

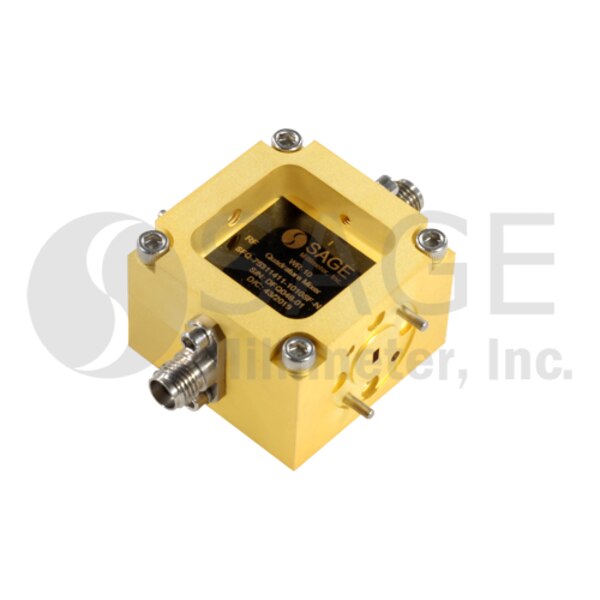

SFQ-75311415-1010SF-N1-M is a W Band quadrature mixer that covers the frequency range of 75 to 108 GHz. The typical conversion loss of the quadrature mixer is 15 dB with an LO driving power of +15 dBm. Since the IF port of the quadrature mixer is DC coupled, the mixer can be used as a phase detector. In addition, the mixer can be readily configured into an image rejection mixer or single sideband modulator by adding an IF quadrature coupler.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency75 GHz
Maximum RF Frequency108 GHz
Minimum LO Frequency75 GHz
Maximum LO Frequency108 GHz
Minimum IF FrequencyDC
Maximum IF Frequency20 GHz
LO Pumping Power+15 dBm
Conversion Loss15 dB
RF PortWR-10 Waveguide
