4-Way In-line Power Divider

75 to 105 GHz, 20 dB Port Isolation, WR-10 Waveguide, W-Band

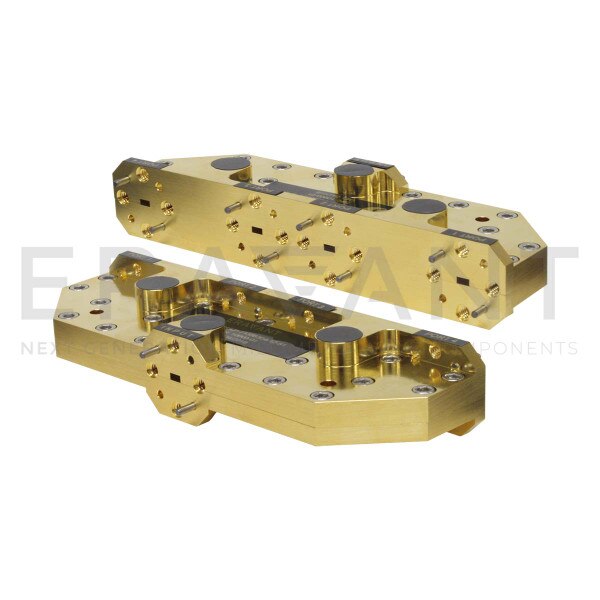

SWP-75311404-10-E1 is a W-band, 4-way waveguide power divider with a 20 dB typical port isolation and a nominal insertion loss of 1.0 dB at each output port. The ports are well balanced and in phase for either power dividing or power combining applications across the frequency range of 75 GHz to 105 GHz. This power divider comes as an in-line configuration with WR-10 waveguides and UG-387/U-M flanges at the input and all outputs.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency105 GHz
Insertion Loss1.0 dB
Port Isolation20 dB
Amplitude Imbalance±0.4 dB
Port VSWR1.2
Power Division4 Way
ConfigurationIn-line (180°)
Input/Output PortsWR-10 WG
