V-Band Transceiver

TX: 64 to 66 GHz, RX: 56 to 58 GHz

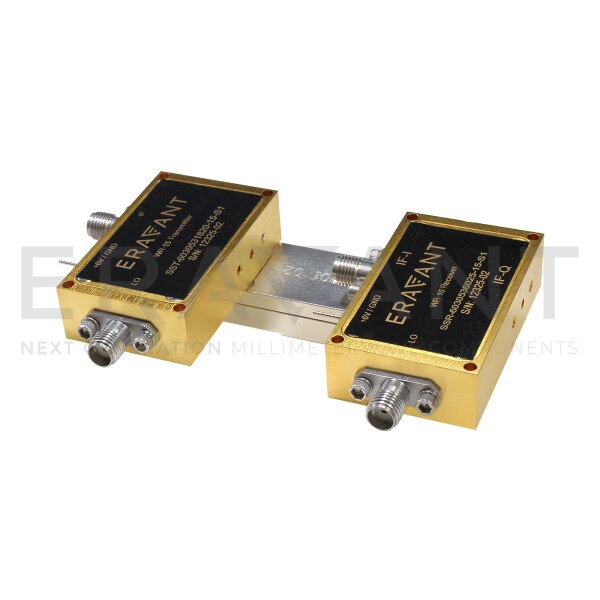

SSC-5736536024-1515-SR1 is a V Band transceiver. The transmitter has a typical transmit output power of +24 dBm in the frequency range of 64 to 66 GHz with an IF input power of 0 dBm and frequency range of DC to 5 GHz. The receiver has a typical receiving linear conversion gain of 20 dB and noise figure of 5.0 dB in the frequency range of 56 to 58 GHz with a IF output frequency range of DC to 5 GHz. The receiver signal linear range is from -100 to -20 dBm. The required typical LO power and frequency range are +5 dBm, 10.83 GHz for the transmitter and 9.5 GHz for receiver channels respectively. The LO and IF ports are equipped with a female SMA connectors and the RX/TX port is a WR-15 waveguide with a UG-385/U flange via a waveguide diplexer. Although the module is offered in a monostatic version via a frequency diplexer, bi-static version is available per request.
Login to view pricing

Bulk Pricing

Quantity Price
1 $13,250.00
2 $12,587.50
3 - 4 $11,958.13

Bulk Availability


Bulk Pricing

Login to view pricing

Technical Details

TX RF Minimum Frequency64 GHz
TX RF Maximum Frequency66 GHz
TX Output Power+24 dBm
Conversion Gain25 dB
LO Input Power+5 dBm
RF PortWR-15 WG
