8th Harmonic Mixer

60 to 90 GHz RF, 5 to 12 GHz LO, DC to 1.6 GHz IF, WR-12 Waveguide, E-Band
SKU:SFH-12SFSF-A3-2
Availability:4 to 6 Weeks ARO

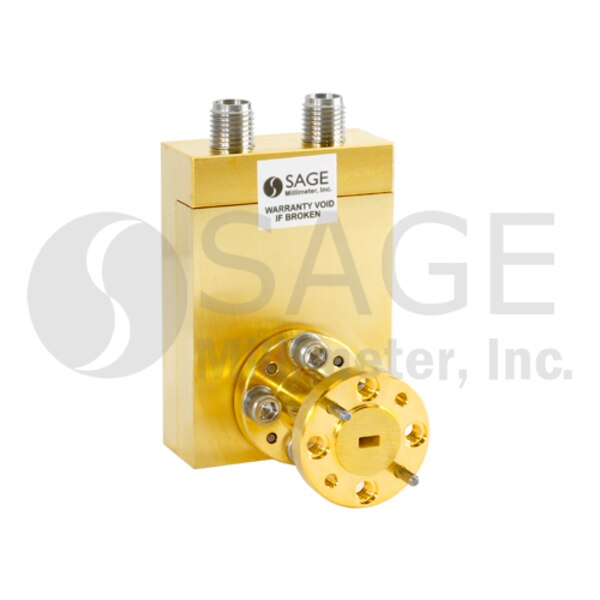

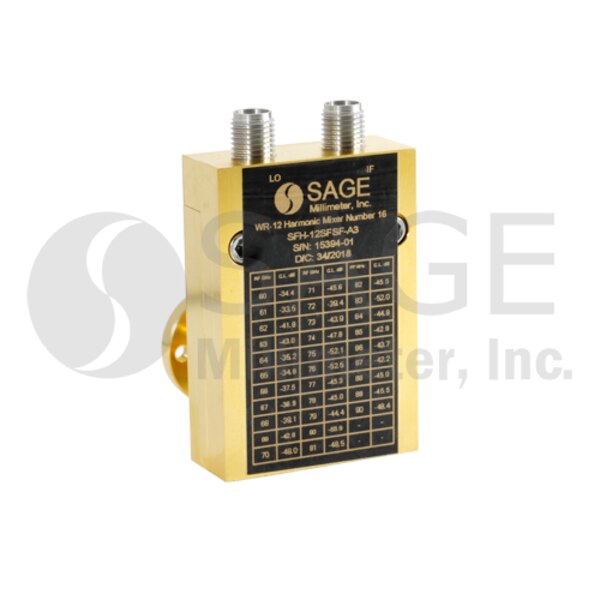

SFH-12SFSF-A3-2 is an E-Band balanced harmonic mixer that is specially designed for use with separate LO and IF ports. The mixer employs high performance, GaAs Schottky diodes and a balanced configuration to produce a superior RF performance. With an IF range of DC to 1.6 GHz, the harmonic mixer uses the harmonic number 8 of a 5.0 to 12.0 GHz LO at +16 dBm to translate 60.0 to 90.0 GHz. The harmonic mixer has a typical conversion loss of 35 dB. The mixer can be used as other even harmonic numbers, such as 6, 10, 12, and 14, etc. with various conversion loss performance. In general, the lower the harmonics, the lower the conversion loss.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 2$3,100.00
3 - 4$2,945.00
5 - 9$2,797.75

Bulk Pricing

Login to View Pricing

Technical Details

Minimum RF Frequency60 GHz
Maximum RF Frequency90 GHz
Minimum LO Frequency5 GHz
Maximum LO Frequency12 GHz
Minimum IF FrequencyDC
Maximum IF Frequency1.6 GHz
Conv. Loss35 dB
Harmonic Number8
RF PortWR-12 Waveguide
