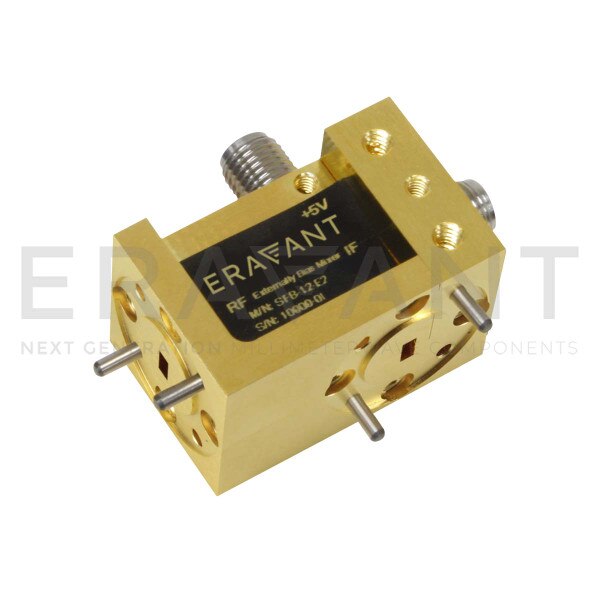

E-Band Externally Biased Balanced Upconverter

60 to 90 GHz, DC to 30 GHz IF, +3 dBm LO Power, WR-12 Waveguide
SKU:SFU-12-E2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SFU-12-E2 is an E-Band, externally biased, balanced up-converter. The up-converter supports the full waveguide band operation for both LO and RF frequencies from 60 to 90 GHz with an extremely broad IF output from DC to 30 GHz. The up-converter offers a typical conversion loss of 9 dB and a high RF to LO port isolation. The main advantage of using an externally biased up-converter is that it only requires a local oscillator (LO) power of 0 to +5 dBm when a bias of +5 VDC is applied. This eliminates the need for an expensive local oscillator, making system integrations more affordable.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency60 GHz
Maximum RF Frequency90 GHz
Minimum LO Frequency60 GHz
Maximum LO Frequency90 GHz
Minimum IF FrequencyDC
Maximum IF Frequency30 GHz
LO Pumping Power+3 dBm
Conversion Loss9 dB
RF PortWR-12 Waveguide
