E-Band Reflective SPST PIN Diode Switch

60 to 90 GHz, 25 dB Isolation, WR-12 Waveguide
SKU:SKS-6039033030-1212-R1
Availability:4 to 6 Weeks ARO

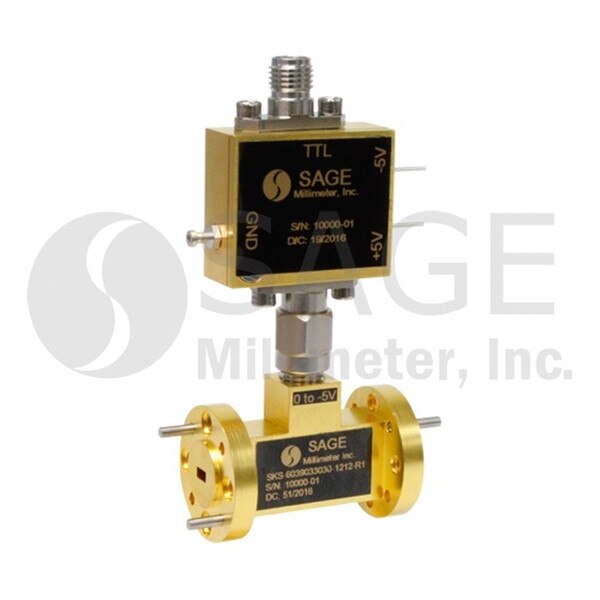

SKS-6039033030-1212-R1 is a PIN diode based, single pole, single throw (SPST) switch with a TTL driver that covers 60 to 90 GHz. This model offers a low insertion loss of 3.0 dB with a typical isolation of 25 dB. The SPST switch has a WR-12 waveguide with UG-387/U flanges at the RF input and output and a female SMA connector for TTL control. The SPST switch can be modified for various operational frequencies under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $3,250.00
3 - 4 $3,087.50
5 - 9 $2,933.13

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Insertion Loss3.0 dB
Isolation25 dB
Power Handling+20 dBm
Bias±5 VDC/10 mA
Switching Speed100 ns
Switch TypeReflective
RF PortWR-12 Waveguide
