E-Band Noise Source with Faraday Isolator, Limited Run

60 to 90 GHz, 13 dB ENR, WR-12 Waveguide
SKU:STZ-12-I1
Availability:3 to 5 Days ARO
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider STZ-12-IT2 as an alternative solution. Read more about Limited Run Products here.

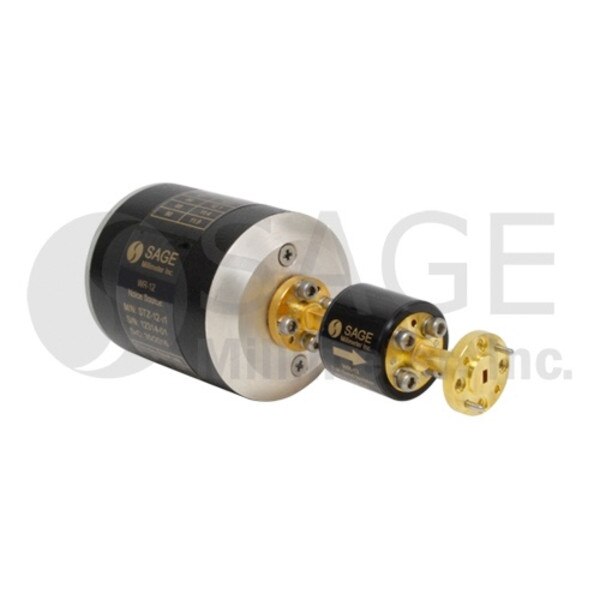

STZ-12-I1 is a full E-Band noise source that delivers a 13 dB ENR with exceptional flatness across the frequency range of 60 to 90 GHz. The noise source is integrated with SAGE Millimeter’s high-quality Faraday isolator (STF-12-S1) to improve the port return loss and load pull for more reliable and accurate noise figure measurements. The noise source can work in either CW or pulse AM mode by applying a TTL triggering signal via a female SMA connector. This feature can also be used in automatic test systems to remotely turn the noise source on and off. In addition, a toggle switch (power/triggering inversion switch) is provided to turn the noise source on and off manually.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
ENR13 dB
ENR Flatness±1.5 dB
Temperature Stability0.01 dB/°C
Long Term Temperature Stability0.05 dB/day
DC Bias+28 VDC/60 mA
RF OutputWR-12 Waveguide
