E-Band Down-converter

58 to 90 GHz RF Input, 4 GHz to 36 GHz IF Output, WR-12 Waveguide
SKU:STC-58390305-12-C1

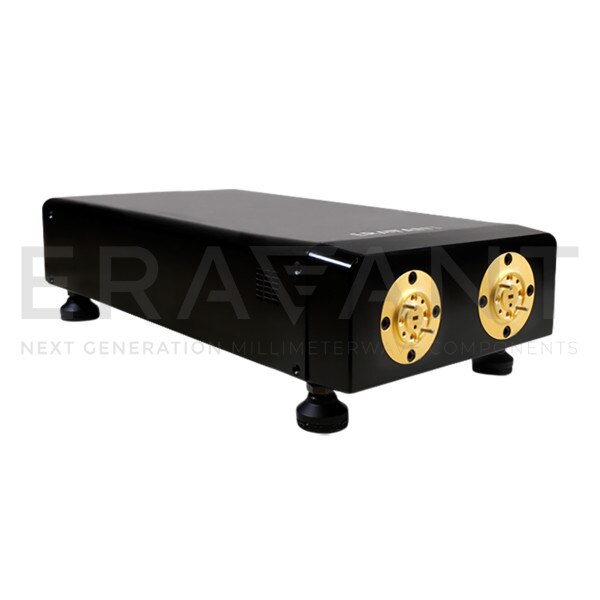

STC-58390305-12-C1 is an extended E-Band down-converter that converts millimeterwave signals from the frequency range of 58 to 90 GHz to the baseband at 4 to 36 GHz. The down-converter has a built-in phase locked oscillator (PLO), which is externally referenced at 10 MHz. The down converter also integrates a PIN diode based SPDT swith at the RF input for receiving signal level monitoring. The switch is controlled by TTL signal and the bypassing “on” is at TTL “high.” The bypassing loss is 4 dB typical and 6 dB maximum. The RF ports for the downconverter are WR-12 waveguides with UG-387/U flange. The IF output is a K(F) connector and PLO reference signal input connector is an SMA(F) connector. A wall mount AC adapter is included for AC powering.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Quantity Price
1 $30,000.00
2 $28,500.00
3 - 4 $27,075.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency58 GHz
Maximum RF Frequency90 GHz
Minimum IF Frequency4 GHz
Maximum IF Frequency36 GHz
Minimum LO Frequency-
Maximum LO Frequency-
DC Bias+12 VDC/600 mA
RF PortWR-12 Waveguide
