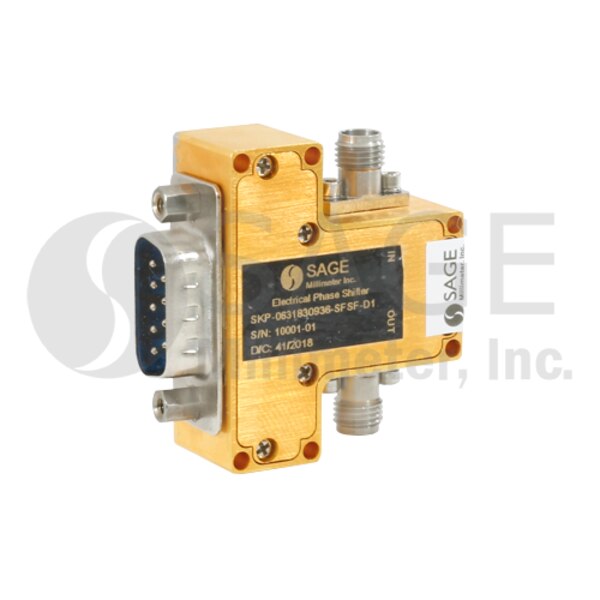

Digitally Controlled Electrical Phase Shifter

6 to 18 GHz, 0 to 360° Phase Shifting Range, SMA (F)
SKU:SKP-0631830936-SFSF-D1
Availability:1 Week ARO
SKP-0631830936-SFSF-D1 is a 6-bit digitally controlled phase shifter that covers the frequency range of 6 to 18 GHz. The phase shifter can be used in many applications such as transmit/receive modules and phased arrays. The phase shifter exhibits 9.0 dB typical insertion loss and offers a 360 degree phase shifting range and phase accuracy of ±9 degrees.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$2,400.00
5 - 9$2,160.00
10 +$1,944.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency6 GHz
Maximum Frequency18 GHz
Insertion Loss9 dB
Phase Shifting Range0 - 360°
Bias+5 V/10 mA
Switching Speed50 ns
Power Handling+25 dBm
Control TypeDigital
RF PortSMA (F)
