Ka-Band Modular Patch Antenna Element

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-PA.
A 2D pattern measurement test is offered under service number FTA-0400PATT-PA.

CLICK HERE to read more about our antenna measurement capabilities.

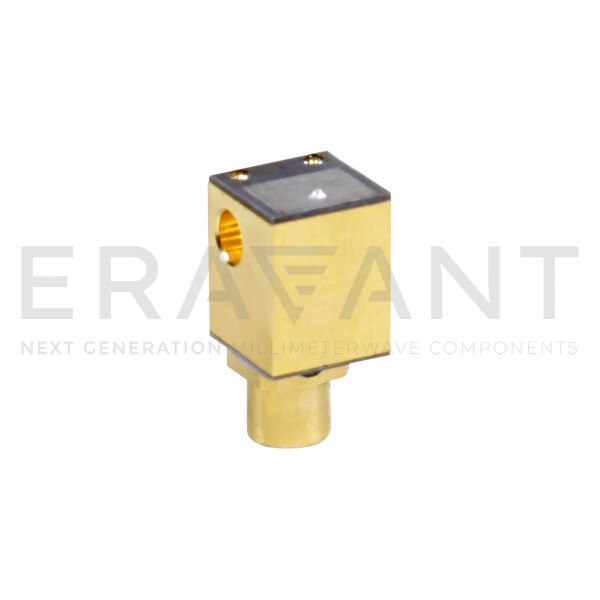

SAM-2832830695-DM-LE is a Linear polarized, single element, 28.0 GHz modular patch antenna. The antenna element itself is modular and can be used for patch array antenna configurations with individual ports so beamforming and MIMO applications can be achieved via various input signal definitions. The individual patch antenna has a gain of 6.0 dBi and a typical vertical beamwidth of 50 degrees and horizontal beamwidth of 95 degrees respectively. The antenna is constructed with a high performance, low loss soft microwave substrate to achieve the best performance in the class. Modular patch array antenna with 64 elements and 32 elements with individual SMPM (M) coaxial connectors can be found under model SAM-2832830695-DM-L1-64C and SAM-2832830695-DM-L1-32C-1.

For further technical details and mechanical considerations please click here to read our publication titled Modular And Scalable Millimeter-Wave Patch Array Antenna For 5G MIMO And Beamforming
